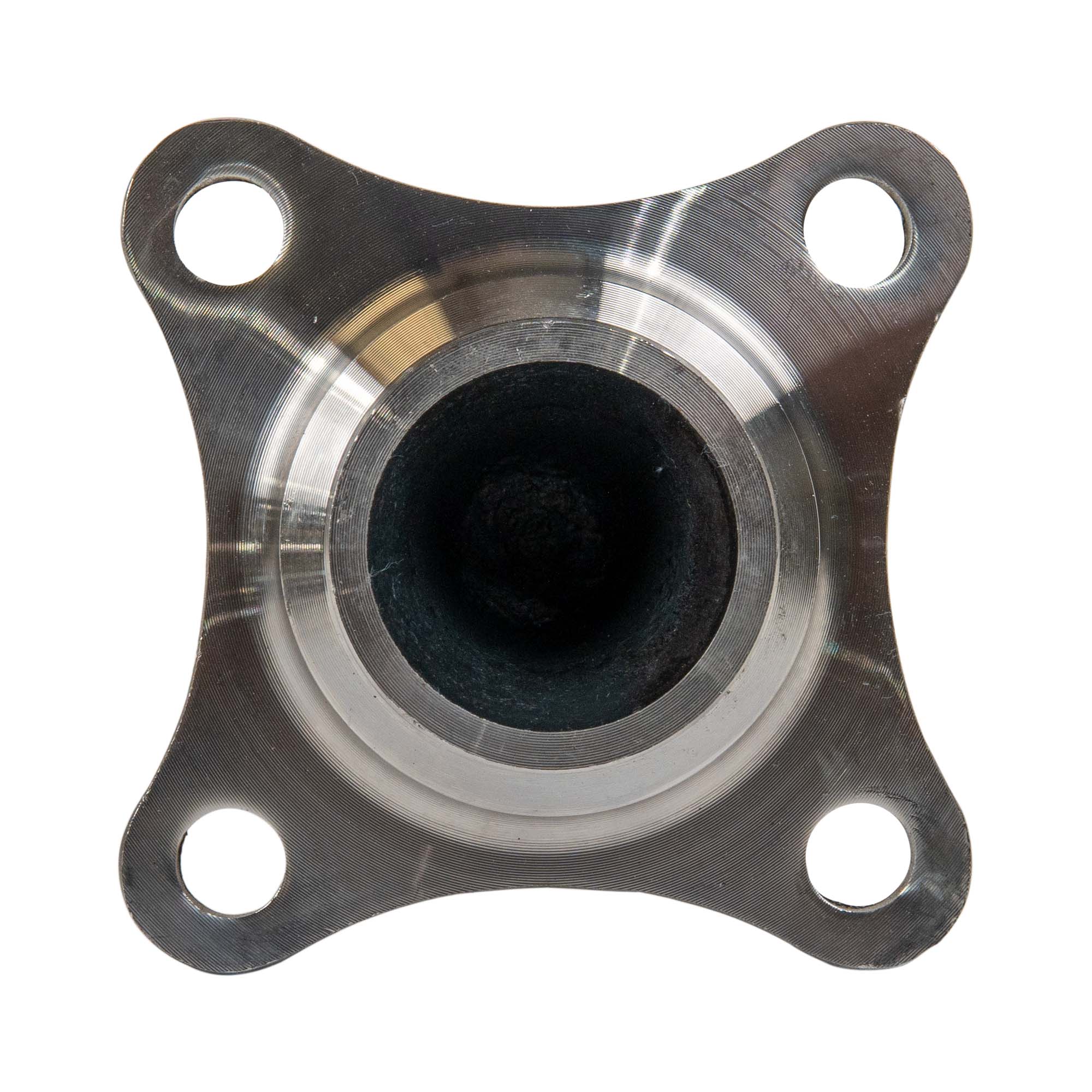

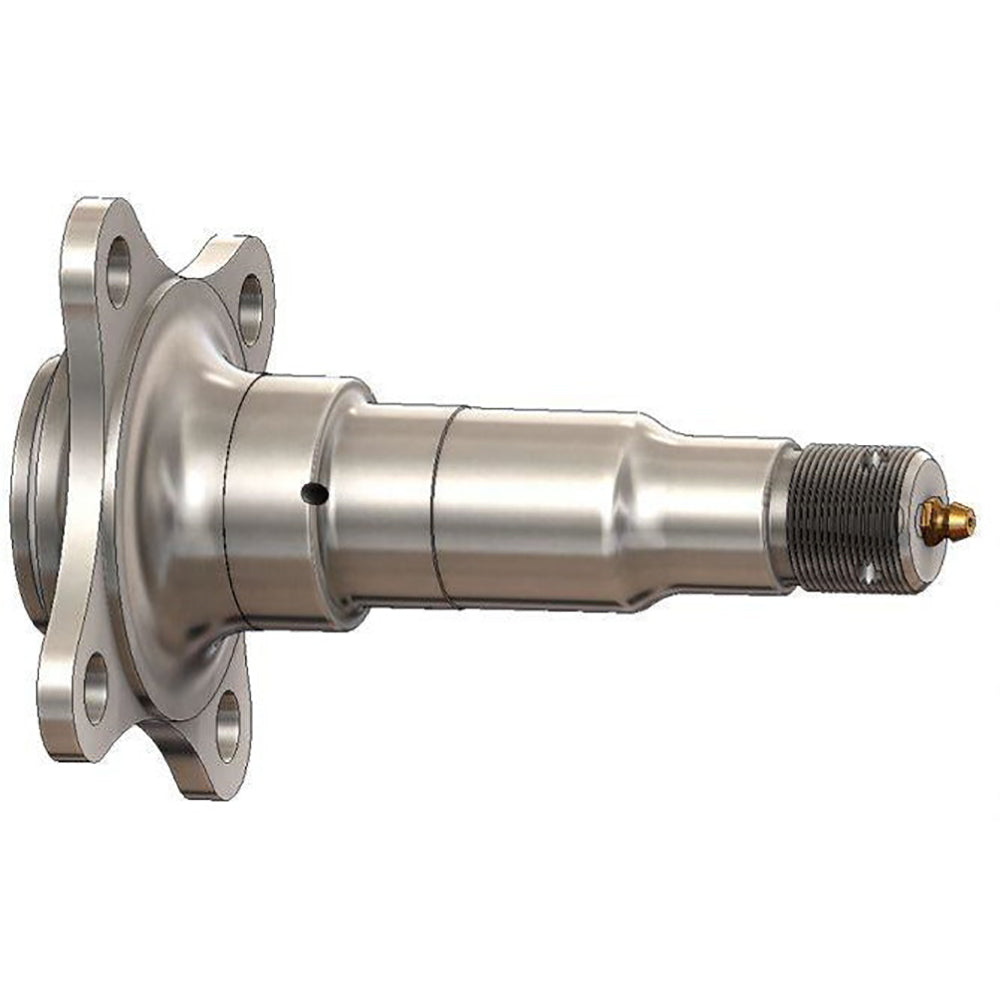

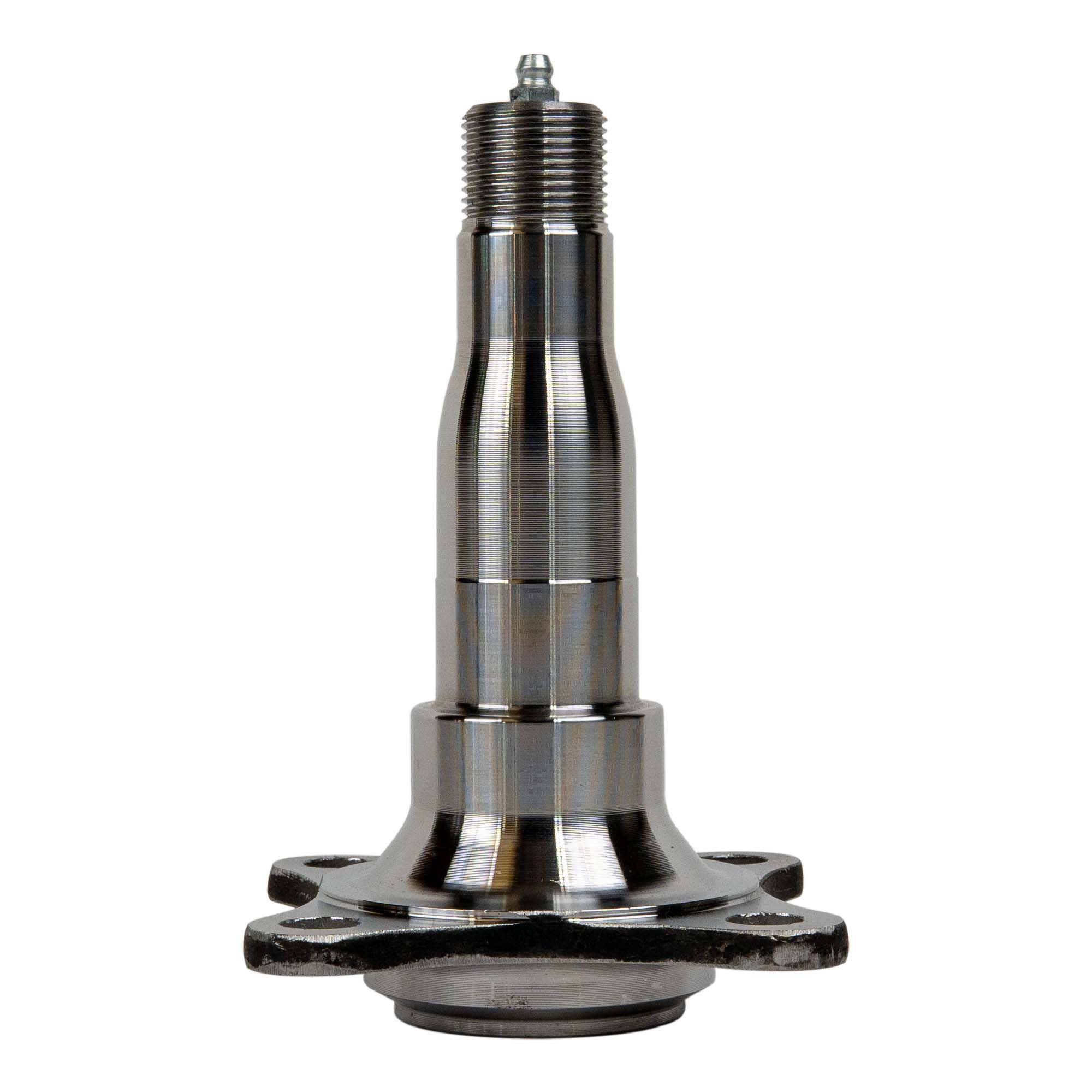

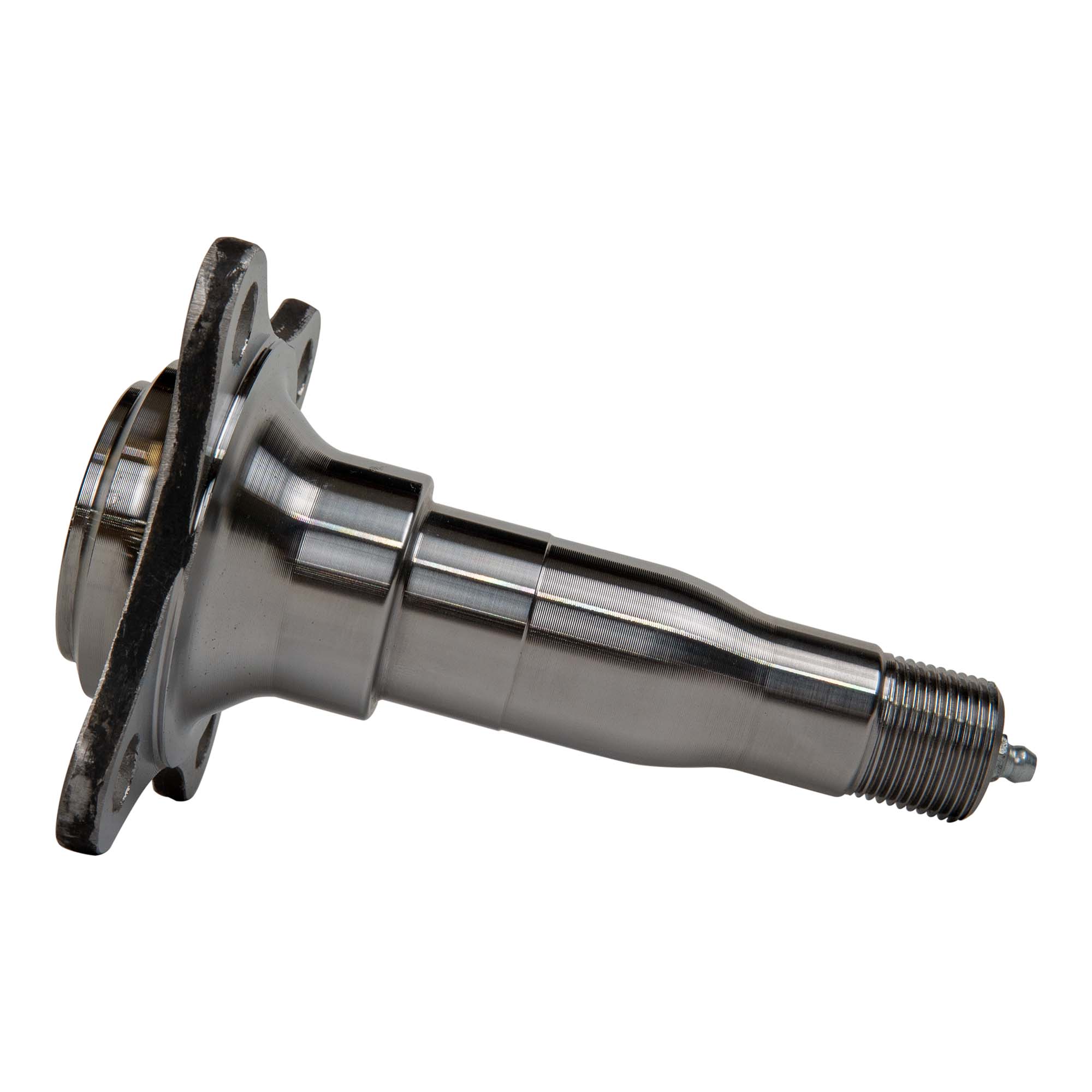

#84 Weld-On Spindle With Flange for 3500 lb Trailer Axles - 1 3/4" Diameter

Skip to product information
1 of 6

#84 Weld-On Spindle With Flange for 3500 lb Trailer Axles - 1 3/4" Diameter

#84 Weld-On Spindle With Flange for 3500 lb Trailer Axles - 1 3/4" Diameter

SKU : 35SPINDLE-84
Regular price $44.99 Sale price $34
SAVE 24% (833) 910-3416
Kit Options:

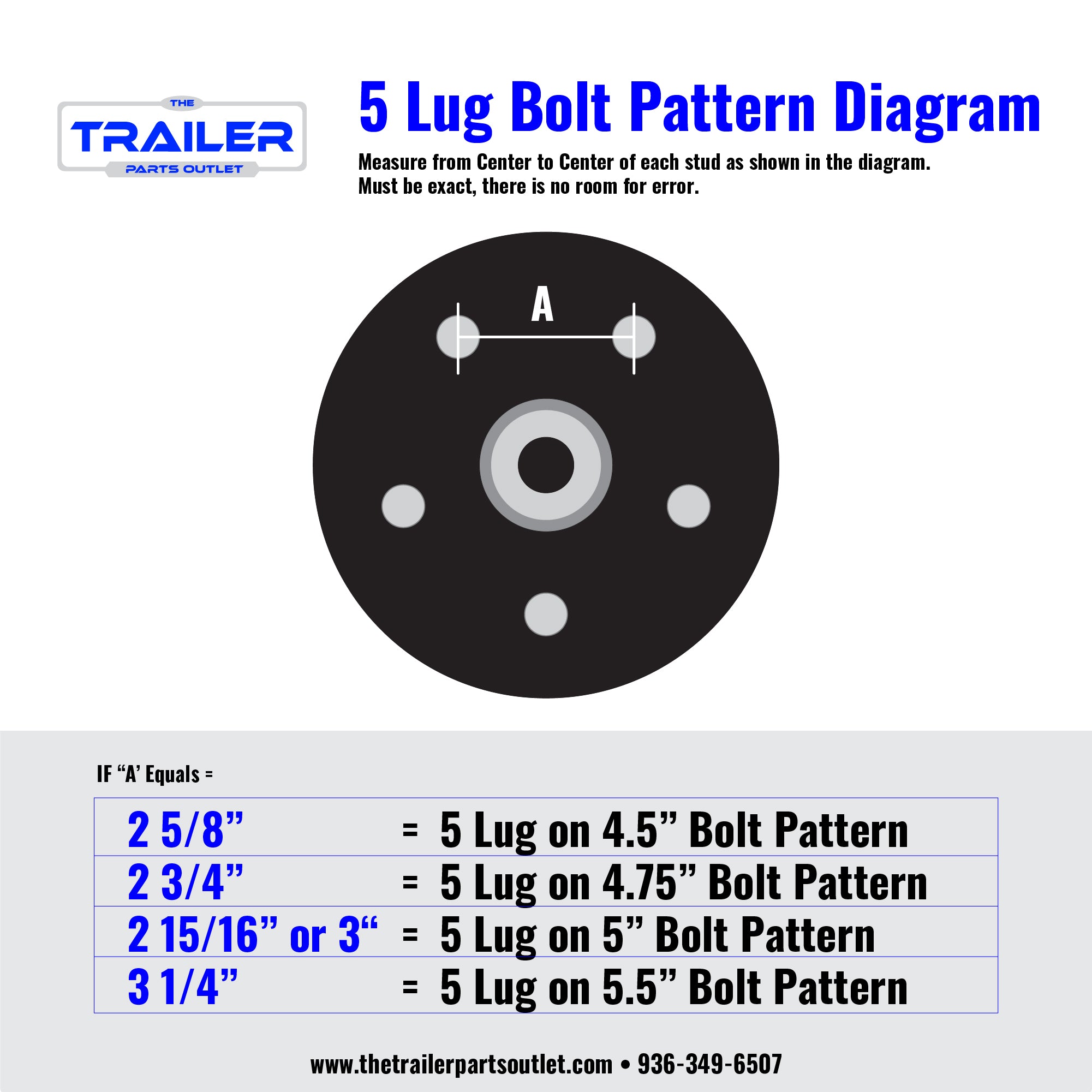

Bolt Pattern:
OR
View full details
#84 Weld-On Spindle With Flange for 3500 lb Trailer Axles - 1 3/4" Diameter
#84 Weld-On Spindle With Flange for 3500 lb Trailer Axles - 1 3/4" Diameter

#84 Weld-On Spindle With Flange for 3500 lb Trailer Axles - 1 ...

#84 Weld-On Spindle With Flange for 3500 lb Trailer Axles - 1 3/4" Diameter

Regular price $44.99 Sale price $34
SAVE 24% (833) 910-3416
  • Product Information
  • Reviews

Spindle Only Specs:

  • 1 - 3.5k Weld-On Spindle
  • Application: 3,500-lb trailer axles
  • Spindle capacity: 1,750 lb
  • Overall spindle length: 8-1/4"

Spindle Pair Specs:

  • 2 - 3.5k Weld-On Spindles
  • Application: 3,500-lb trailer axles
  • Spindle capacity: 1,750 lb
  • Overall spindle length: 8-1/4"

Spindle Kit Specs:

  • 1 - 3.5k Weld-On Spindle
  • 1 - 3,500 lb Trailer Axle Bearing Kit
    • 1 - L68111 Inner Race 2.362" OD
    • 1 - L44610 Outer Race 1.98" OD
    • 1 - L44649 Outer Bearing 1.063" ID
    • 1 - L68149 Inner Bearing 1.378" ID
    • 1 - 10-19 3500 lb Grease Seal 1.719" ID 2.565" OD
    • 1 - 3,500 lb Grease Cap with Plug
    • 1 - Cotter Pin
  • 1 - Spindle Washer
  • 1 - Spindle Nut

Spindle Kit Pair Specs:

  • 2 - 3.5k Weld-On Spindle
  • 2 - 3,500 lb Trailer Axle Bearing Kit
    • 2 - L68111 Inner Race 2.362" OD
    • 2 - L44610 Outer Race 1.98" OD
    • 2 - L44649 Outer Bearing 1.063" ID
    • 2 - L68149 Inner Bearing 1.378" ID
    • 2 - 10-19 3500 lb Grease Seal 1.719" ID 2.565" OD
    • 2 - 3,500 lb Grease Cap with Plug
    • 2 - Cotter Pin
  • 2 - Spindle Washer
  • 2 - Spindle Nut

Weld Your Own Idler Axle Kit Specs:

  • 2 - 3.5k Weld-On Spindle
  • 2 - 3.5k Idler Hub 5x4.5 or 5x5
  • 2 - 3,500 lb Trailer Axle Bearing Kit
    • 2 - L68111 Inner Race 2.362" OD (Pre-Pressed In Hub)
    • 2 - L44610 Outer Race 1.98" OD (Pre-Pressed In Hub)
    • 2 - L44649 Outer Bearing 1.063" ID
    • 2 - L68149 Inner Bearing 1.378" ID
    • 2 - 10-19 3500 lb Grease Seal 1.719" ID 2.565" OD
    • 2 - 3,500 lb Grease Cap with Plug
    • 2 - Cotter Pin
  • 2 - Spindle Washer
  • 2 - Spindle Nut
  • 10 - Cone Wheel Lug Nuts
  • 1 - Grease Tub (1 lb)

Weld Your Own Brake Axle Kit Specs:

This 3.5K trailer axle spindle is designed for Dexter, TK, and Rockwell American axles. It can provide the fit that you need to get your trailer back on the road. It's high-quality construction helps it stand up to daily wear and tear, so no matter where your next job takes you, you can feel confident that your spindle will keep your trailer rolling.

Features:
