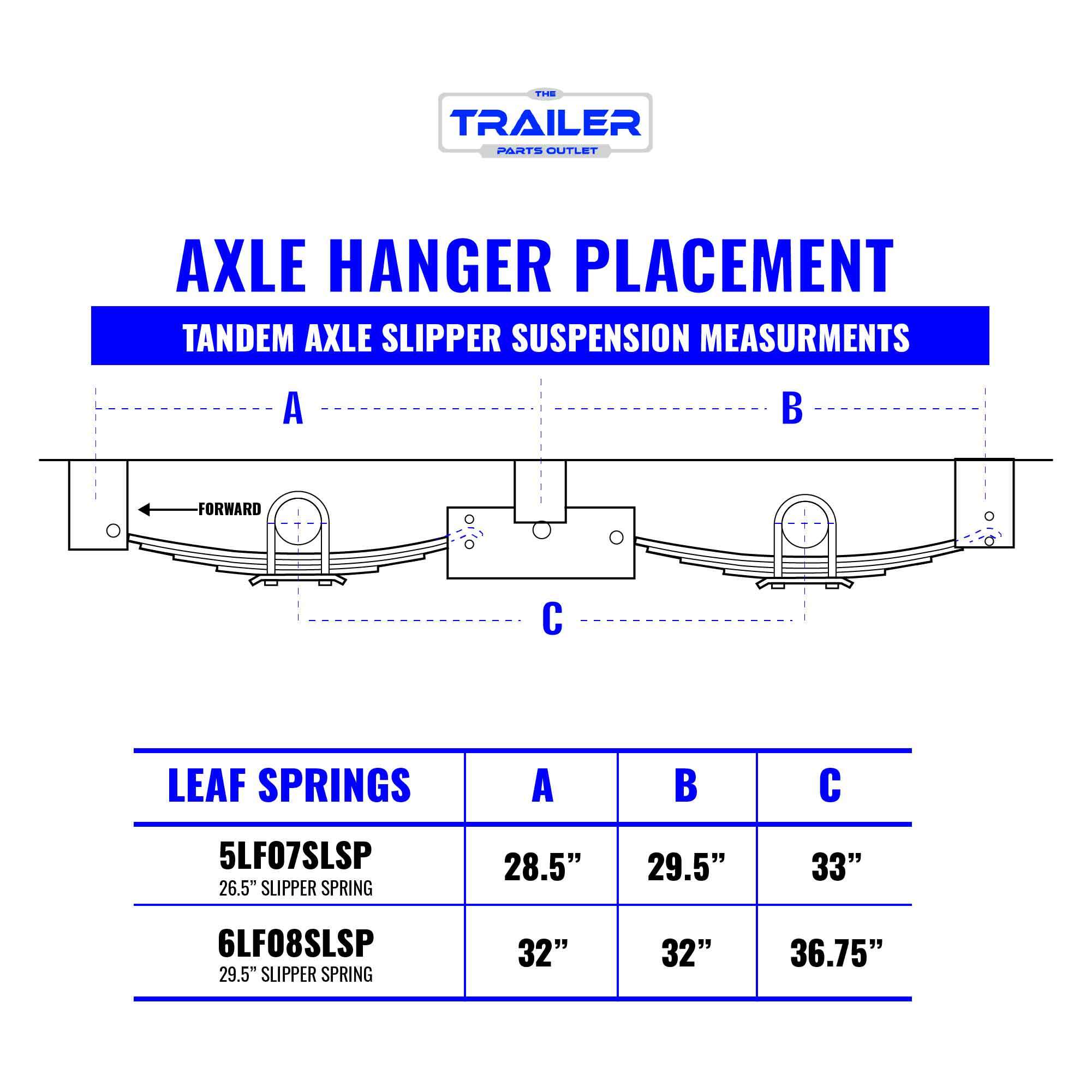

  • 5,200 lb - 8,000 lb Tandem Axle Hanger Placement Diagram (5.2K - 8K Slipper Spring Suspension Setup)
  • 12K-16K Trailer Axle Hydraulic Drum Brake Assembly - 12.25"x5" - 12000-16000 lb Capacity - Right Hand (Passenger Side).
  • What's Included: 1 - 3.5k Electric Drum Brake Axle (5x4.5) - 4" Drop 2 - 1.75k 25.25" 4 leaf Double Eye Springs 1 - 3.5K U-Bolt Kits 1 - Double Eye Hanger Kit This 3.5k TK Heavy Duty
1 6

8000 lb Tandem Axle TK Trailer kit - 16K Capacity - Super Single (Original Series) 9/16" Studs

8000 lb Tandem Axle TK Trailer kit - 16K Capacity - Super Single (Original Series) 9/16" Studs

SKU : 08DHDSSKTTK7556916865

Online price only

$2,675.99

Online price only

SAVE 0% (833) 910-3416
Shipping: Calculated at Checkout | Product Wt. 1090.0 lb
Hubface/Spring Center:
Tax Exempt? Enter info in cart when you're done shopping.
View full details
  • Product Information
  • How To
  • Reviews

8K Tandem Axle TK Trailer Kit — 16,000 lb Super Single | 75/56

8K tandem axle kit with 17.5" super single wheel assemblies, built for medium-duty applications.

Specifications:

  • Capacity: 16,000 lb (2 x 8,000 lb axles)
  • Axle: True 8K TK electric brake, 12 1/4" x 3 3/8" brakes, 3.5" tube
  • Hubface/Spring Center: 75/56
  • Bolt pattern: 8x6.5
  • Studs: 9/16"
  • Wheels: 17.5" super single, silver/gray
  • ABS: Not ABS compatible

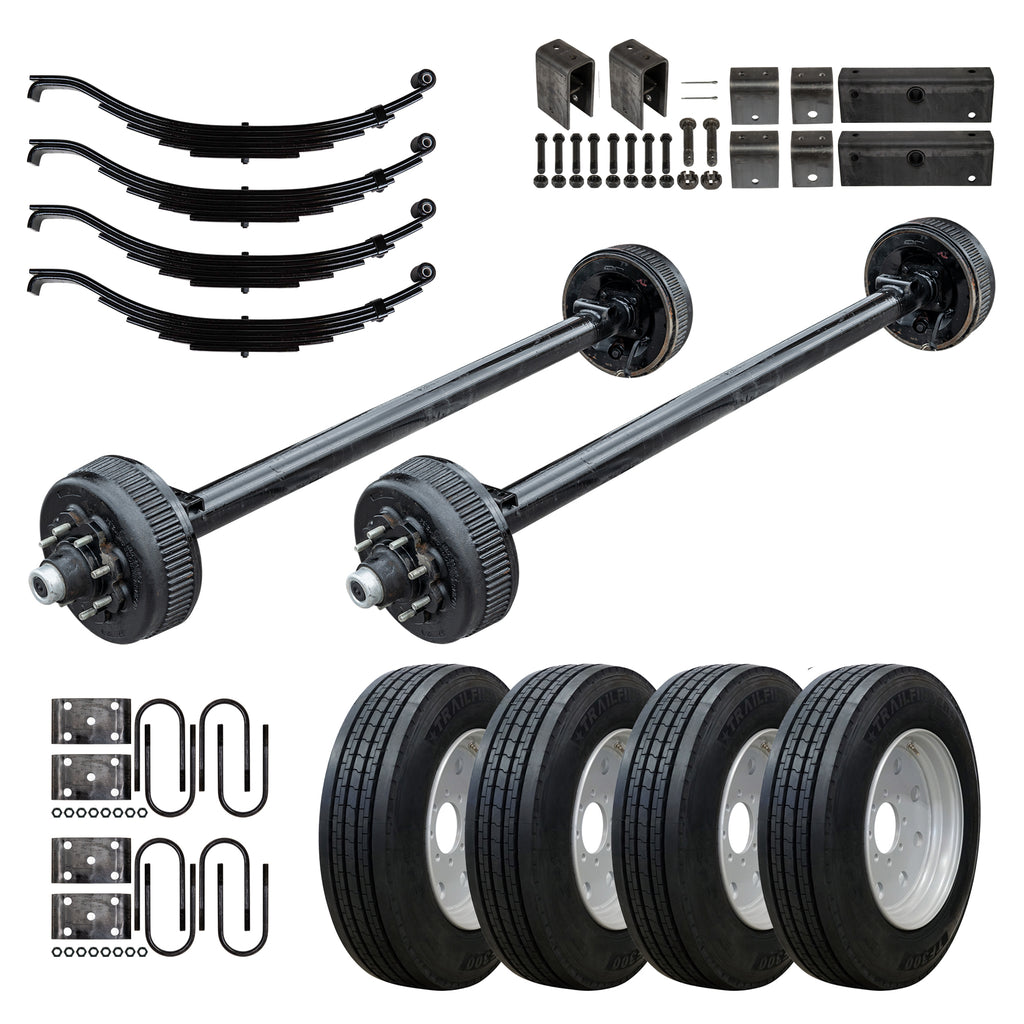

What’s Included:

  • (2) True 8k TK Electric Brake Trailer Axle - (12 1/4" Brake - 3.5" Tube) - 75/56 - 8x6.5 - 9/16"
  • (4) 6 Leaf 29 1/2" x 2" Wide Trailer Heavy Duty Slipper Spring for 8000 lb Axles
  • (2) 9/16" Trailer U-bolt kit for 3.5" Tube 8000 lb Axles
  • (1) Trailer Tandem Slipper Hanger Kit for 5200 - 8000 lb axles
  • (4) 17.5" 18 ply Radial Trailer Tire & Wheel - ST 215/75R17.5 (Super Single Silver Mod) - 8x6.5
  • (32) 9/16" Swivel Flange Nut

How to Measure: Hubface is measured from one hub face (where the studs come out) to the hub face on the opposite side. Spring Center is measured from the center of one spring seat to the center of the opposite spring seat.

Key Benefits:

  • Axles come fully assembled and packed with high-temp axle grease
  • Underslung design with spring seats welded on the bottom for a lower ride height
  • EZ Lube design with removable rubber plug on the hub cap
  • 3.5" heavy-duty axle tubes for added strength
  • Promotes even tire wear and smooth highway performance

Ideal For:

  • Utility trailers
  • Car haulers
  • Flatbed trailers
  • Equipment trailers
  • Dump and lowboy trailers
  • Cargo and enclosed trailers
