10K GD Trailer Axle Hub and Drum - 8 Lug (Made Before July 2009)

Skip to product information
1 of 5

10K GD Trailer Axle Hub and Drum - 8 Lug (Made Before July 2009)

10K GD Trailer Axle Hub and Drum - 8 Lug (Made Before July 2009)

SKU : 0910GDHUBDRUM865-58BARE-OLDSTYLE-TK
Regular price $300.99 Sale price $250
SAVE 17% (833) 910-3416
Hub/Drum Options:
OR
View full details
9-10KGD Trailer Axle Hub and Drum - 8 Lug (Made Before July 2009) - The Trailer Parts Outlet
9-10KGD Trailer Axle Hub and Drum - 8 Lug (Made Before July 2009) - The Trailer Parts Outlet

10K GD Trailer Axle Hub and Drum - 8 Lug (Made Before July 2009)

10K GD Trailer Axle Hub and Drum - 8 Lug (Made Before July 2009)

Regular price $300.99 Sale price $250
SAVE 17% (833) 910-3416
  • Product Information
  • Reviews

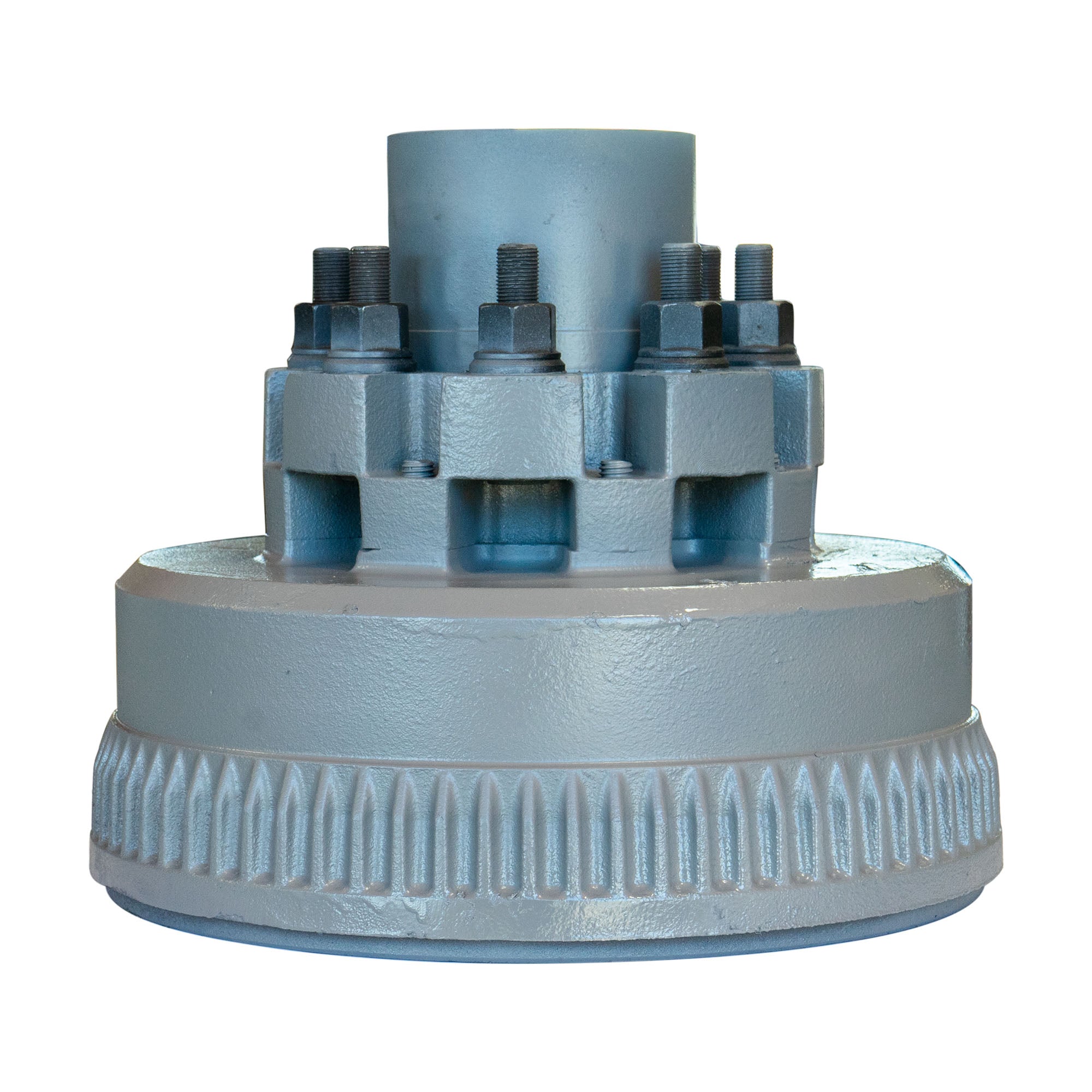

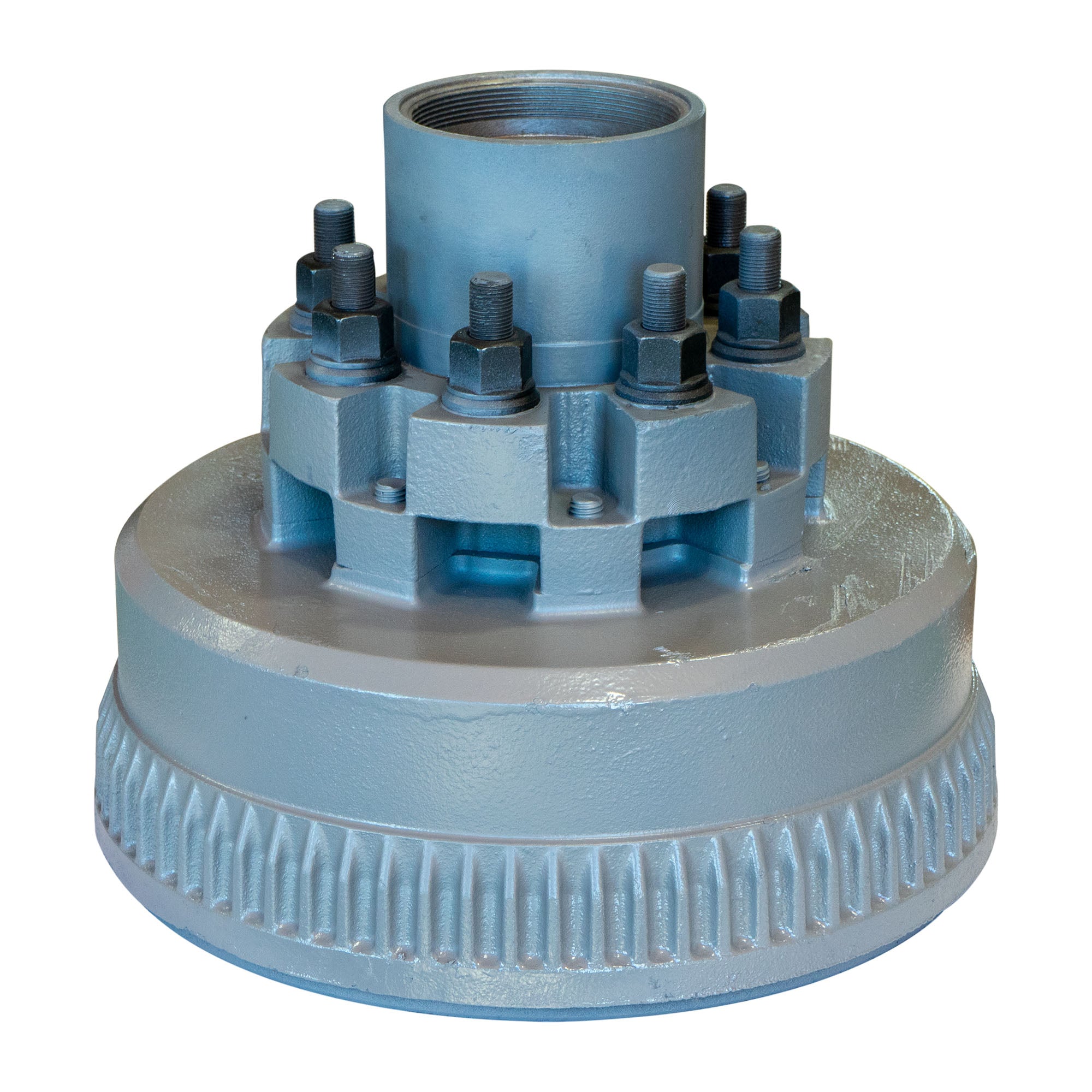

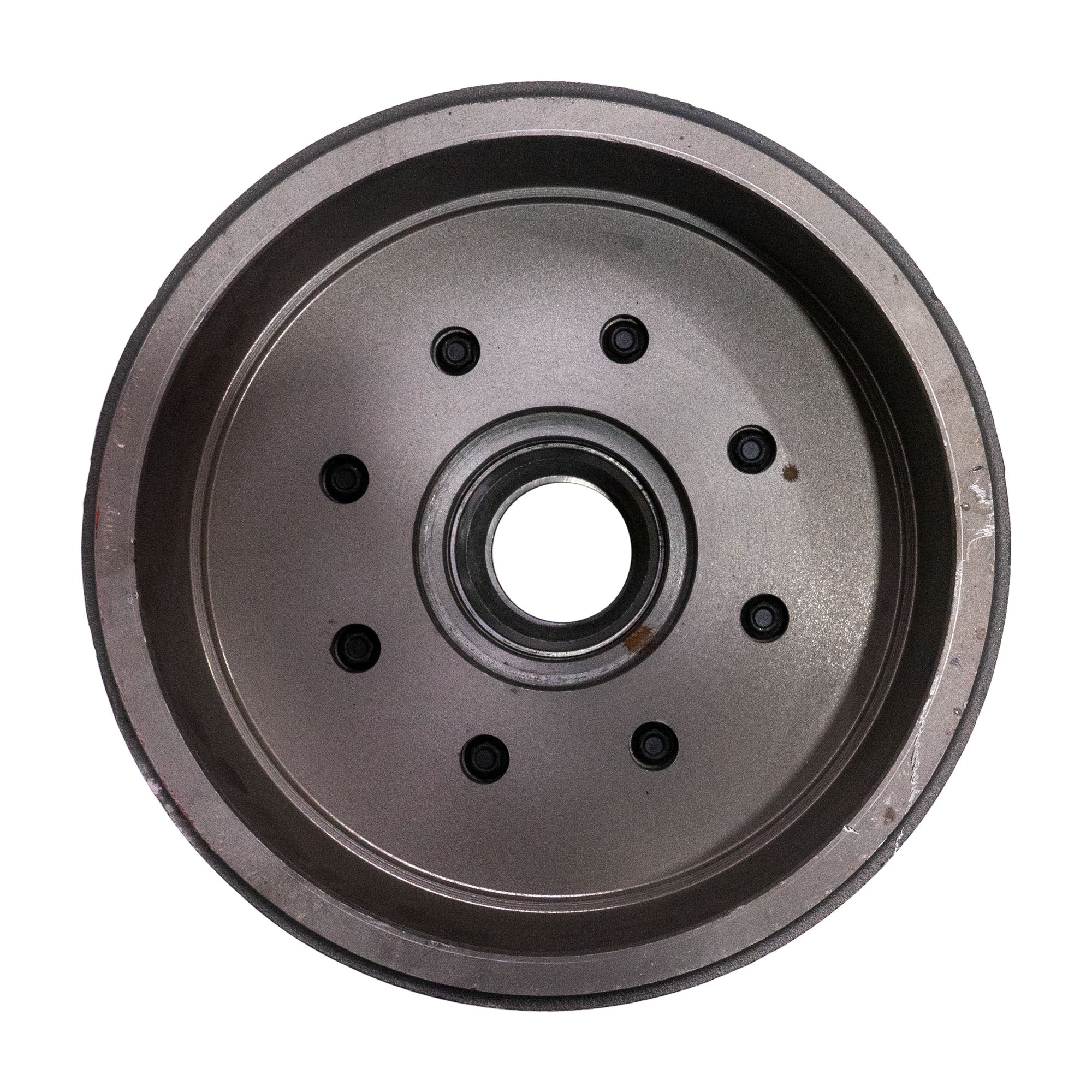

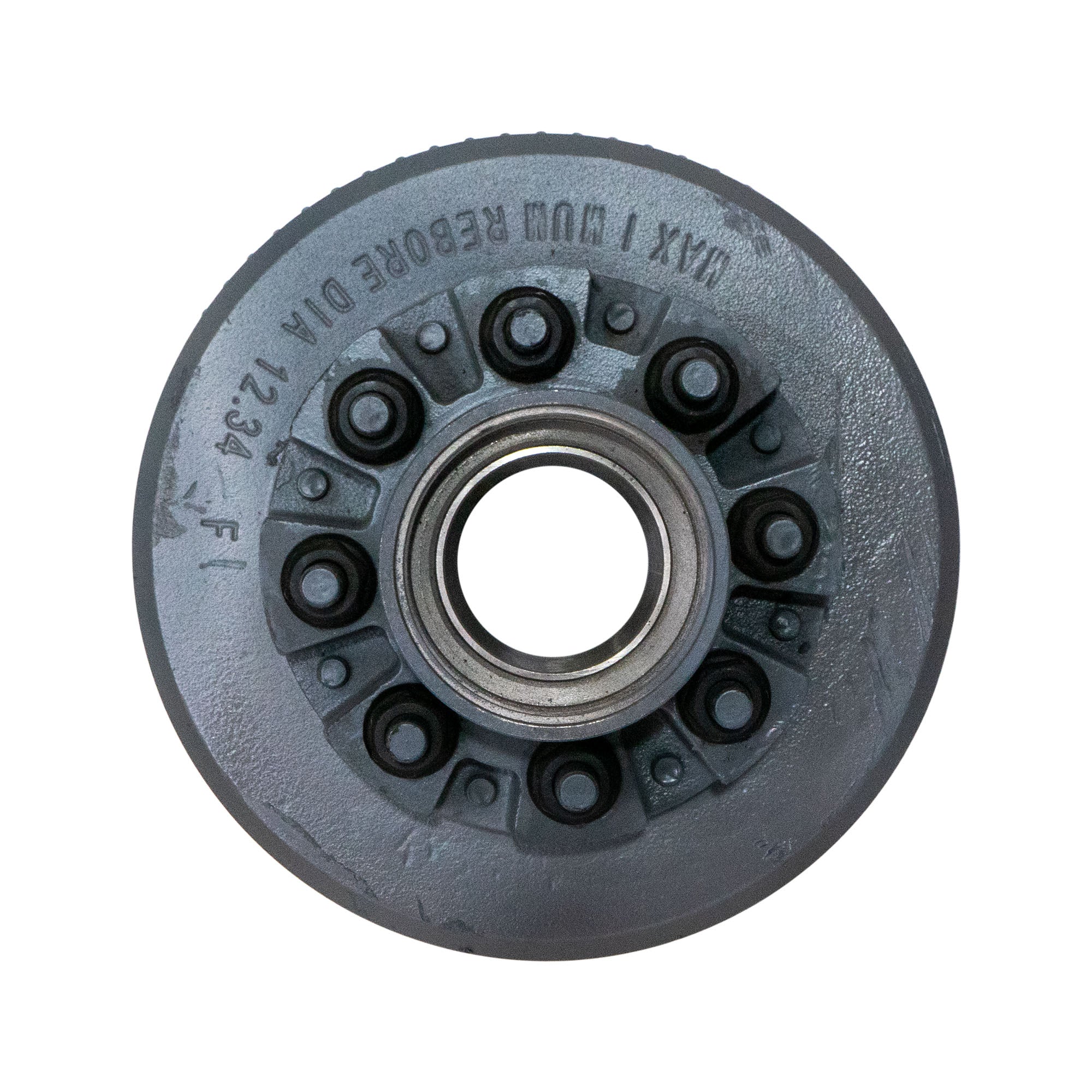

Hub/Drum Only Specs:

  • 1 - 10K Hub/Drum Only 8x6.5 Bolt Pattern (Old Style)
  • 1 - 25520 Outer Race 3.265" OD (Pre-Pressed In Hub)
  • 1 - 382A Inner Race 3.813" OD (Pre-Pressed In Hub)
  • Uses 25580 (1.75" ID) and 387A (1.25" OD) bearings (sold separately)
  • 5/8" Wheel Studs
  • Hub/Drum for 10,000lb GD Axles Manufactured Before 07/2009
  • Dexter Compatible

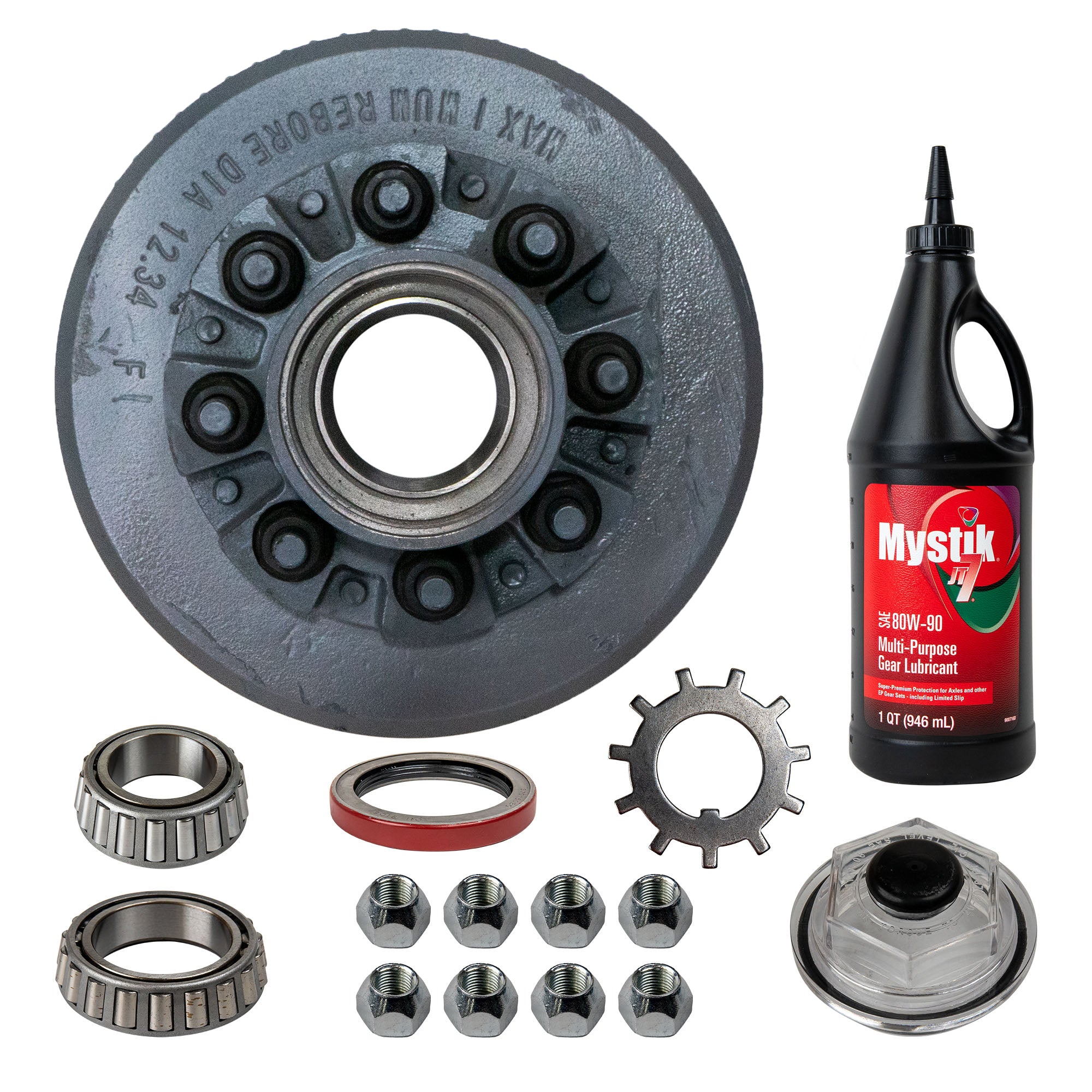

Hub/Drum Assembly Specs:

  • 1 - 10K Hub/Drum Only 8x6.5 Bolt Pattern (Old Style)
  • 1 - 10k (10,000 lb Capacity) Bearing Kit
    • 2 - 25580 Outer Bearing 1.750 I.D
    • 2 - 387A Inner Bearing 2.250 I.D
    • 2 - 25520 Outer Race 3.265 O.D (Pre-Pressed In Hub)
    • 2 - 382A Inner Race 3.813 O.D (Pre-Pressed In Hub)
    • 2 - Unitized Oil Seal-010-051-00 3.880 O.D 2.875 I.D
  • 1 - Oil Bath Caps and Plug 21-36
  • 1 - 10K Tang Washer
  • 1 - Multi-Purpose Gear Lubricant (1 Quart)
  • 8 - Cone Wheel Lug Nuts
  • 5/8" Wheel Studs (Pre-Pressed In Hub)

TK Service Kit Specs:

Bulk Hub/Drum Specs:

  • 12 - 10K Trailer Axle Hub/Drum 8x6.5 - Dexter General Duty (Old Style)
  • 12 - 25520 Outer Race 3.265 O.D (Pre-Pressed In Hub)
  • 12 - 382A Inner Race 3.813 O.D (Pre-Pressed In Hub)

Crate Hub/Drum Specs:

  • 24 - 10K Trailer Axle Hub/Drum 8x6.5 - Dexter General Duty (Old Style)
  • 24 - 25520 Outer Race 3.265 O.D (Pre-Pressed In Hub)
  • 24 - 382A Inner Race 3.813 O.D (Pre-Pressed In Hub)

This 10K general-duty trailer axle hub and drum is an ideal option for a number of trailer types, and we know that you'll find it easy to install. The inner and outer races are already pressed in, and the 8 on 6.5" bolt pattern makes it easy to find suitable tire and wheel assemblies (TWAs) for your trailer. We can help you find the seals, bearings, caps, and nuts that you need to complete your repairs, and we're always happy to answer any questions you may have. Order your new 9K-10K general-duty trailer axle hub and drum from The Trailer Parts Outlet today!

Features:

  • Hub & Drum with 8 on 6.5" Bolt Pattern For 10,000 lb GD Axles Manufactured October 1989 - July 2009
  • This hub is designed for use with 10K GD axle spindles
  • This two piece design comes standard on Dexter axles made between October 1989 - July 2009.
  • The races are pre-pressed for your convenience
  • The oil seal, bearings, oil cap, wheel nuts and retaining ring for the hub are sold separately
  • Each hub has a capacity of 5,000 lbs
  • The 12-1/4" x 3-3/8" drum is already mounted to the hub for ease of installation
  • Spindle nut and washer sold separately
  • NOTE: This hub is not compatible with Texas Pride axles
