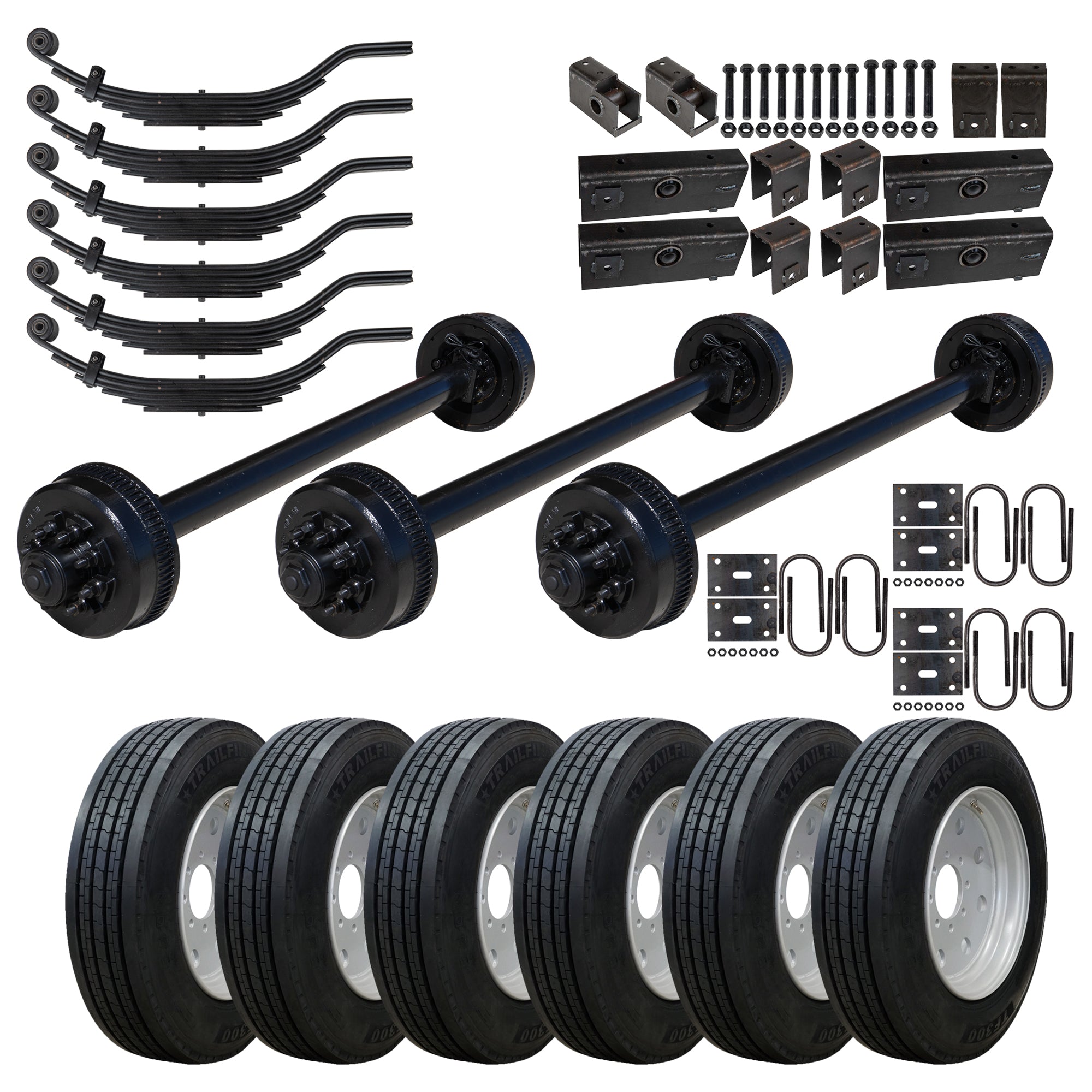

  • 9000 lb TK Triple Axle Kit - 27K Capacity with Super Single Tires and Wheels
1 4

9000 lb TK Triple Axle Kit - 27K Capacity (Axle Series)

9000 lb TK Triple Axle Kit - 27K Capacity (Axle Series)

SKU : 09THDAKTTK7558865

Online price only

$3,683.99

Online price only

SAVE 0% (833) 910-3416
Shipping: Calculated at Checkout | Product Wt. 1055.0 lb
Kit Options:
Hubface/Spring Center:
Tax Exempt? Enter info in cart when you're done shopping.
View full details
  • Product Information
  • How To
  • Reviews

9K Triple Axle Kit — Grease Bath — 27K capacity | Axles with Suspension

Complete triple running gear without tires: three 9,000 lb electric brake grease-bath axles, matched slipper suspension. 27,000 lb combined capacity.

Axle Specifications:

  • Load rating: 9,000 lbs (9K)
  • Axle type: Electric Brake (Grease Bath)
  • Brake size: 12¼″ × 3⅜″ electric drum
  • Tube diameter: 4″ straight axle tube
  • Hubface/Spring Center: 75/58
  • Bolt pattern: 8x6.5
  • Stud size: 5/8″
  • Spring mount: Underslung (lower ride height)
  • Lubrication: Grease bath (screw-on grease cap, unitized grease seal)
  • Compatibility: Direct replacement for Dexter, Lippert, Hayes, and AL-KO axles
  • ABS: Not compatible with ABS systems

How to Measure: Hubface is measured from one hub face (where the studs come out) to the hub face on the opposite side. Spring Center is measured from the center of one spring seat to the center of the opposite spring seat.

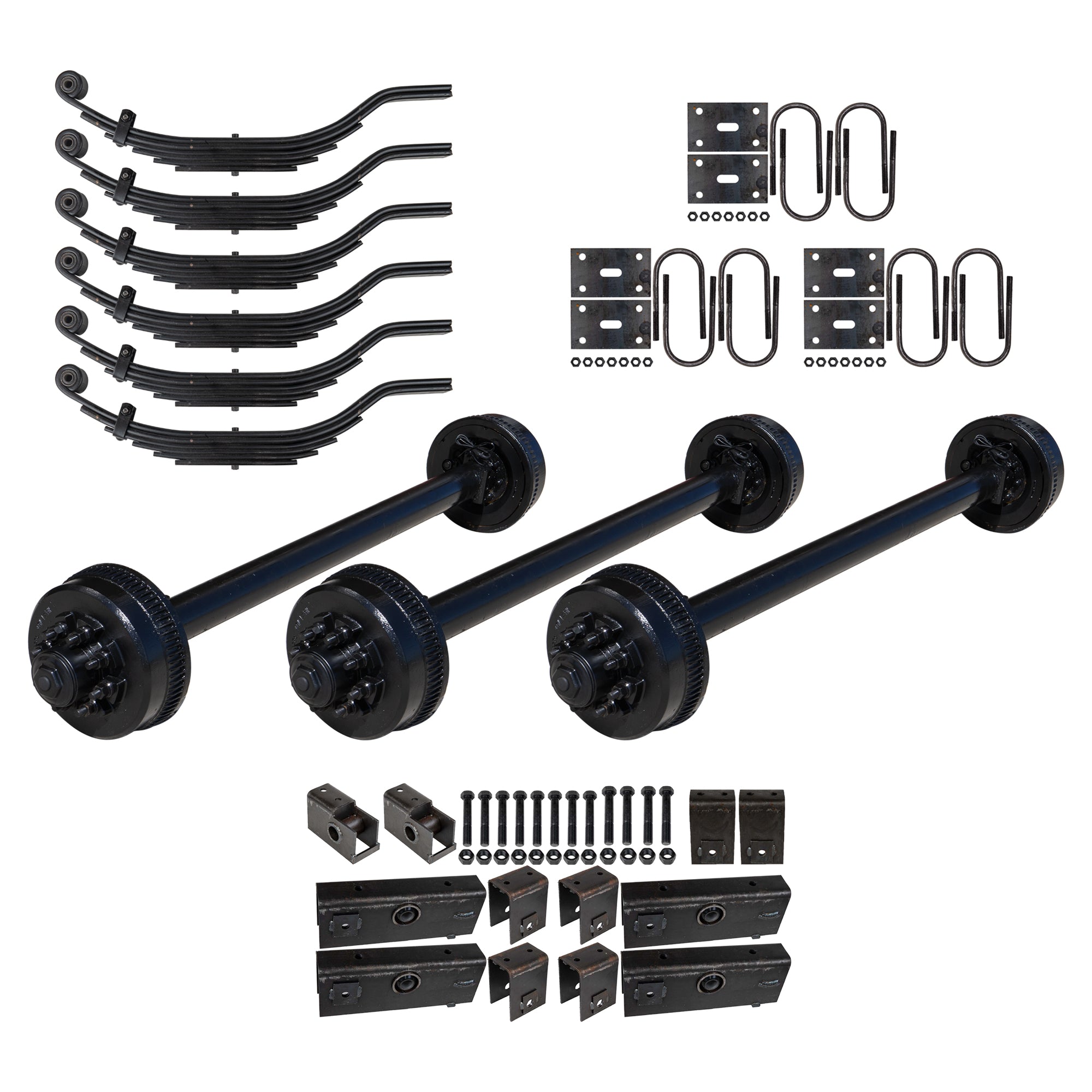

What’s Included:

  • (3) Fully Assembled 9k TK Electric Brake Grease Bath Axles — 75/58 — 8x6.5
  • (6) 4.5k 30 1/2" x 2" 6-Leaf HD Slipper Springs
  • (3) 9k U-Bolt Kits (9/16″, 4″ tube)
  • (1) Slipper Triple Hanger Kit (9k)

Key Benefits:

  • Fully assembled & packed with high-temp grease — ready for fast installation
  • 4″ high-strength steel tube — heavy-duty weight handling and a smoother highway experience
  • Grease-bath design — sealed system, simpler and lower maintenance than oil bath
  • Pre-Packaged Fitment — Matched components, no cross-referencing parts

Ideal For:

  • Flatbed & car hauler trailers
  • Gooseneck & dump trailers
  • Equipment & lowboy haulers
  • Commercial & fleet builds

Why Buy from The Trailer Parts Outlet?

  • This Axle is proudly manufactured in the U.S.A.
  • Fast shipping — order today, ships tomorrow
  • Bulk & wholesale options available
  • Financing options
  • Dedicated expert support

Have questions? Call or message us at (936) 289-3191 — we’re here to help you find the perfect axle for your trailer build or repair. Order your 9K Triple Axle Kit today and get back on the road with confidence!
