AD08 - 8' x 5' Dump Bed 3.5K or 5.2K DIY Master Plan

  • DIY Trailer Plan - AD08 - Dump Bed
  • 8' x 5' Dump Bed Blueprint
1 2

AD08 - 8' x 5' Dump Bed 3.5K or 5.2K DIY Master Plan

AD08 - 8' x 5' Dump Bed 3.5K or 5.2K DIY Master Plan

SKU : MPAD08PAPER

Online price only

$124.99

Online price only

SAVE 0% (833) 910-3416
4.2
Rated 4.2 out of 5 stars
53 Reviews
Shipping: Calculated at Checkout
Tax Exempt? Enter info in cart when you're done shopping.
Plan Type:
Kit Option:
OR
View full details
DIY Trailer Plan - AD08 - Dump Bed
DIY Trailer Plan - AD08 - Dump Bed

AD08 - 8' x 5' Dump Bed 3.5K or 5.2K DIY Master Plan

AD08 - 8' x 5' Dump Bed 3.5K or 5.2K DIY Master Plan

$124.99
SAVE 0% (833) 910-3416
4.2
Rated 4.2 out of 5 stars
53 Reviews
  • Product Information
  • Reviews

COPYRIGHT DISCLAIMER:

No part of this publication may be reproduced, distributed, or transmitted in any form or by any means, including photocopying, recording, or other electronic or mechanical methods, without the prior written permission of the publisher except in the case of brief quotations embodied in reviews and certain other non-commercial uses permitted by copyright law. By purchasing this product, the purchaser agrees to comply with this disclaimer.

Specs:

  • Box Size: 91"Long x 61"Wide x 23"High w/4 sides
  • Bed Capacity: 2+ cubic yards
  • Gross Capacity: 5,200 lbs
  • Empty Weight: 1311 lbs
  • Empty Tongue Weight: 220 lbs
  • Plan Capacity: 3.5k or 5.2K
  • **DOES NOT INCLUDE STEEL FRAME/TUBING, PLYWOOD, OR FLOORING**

Features:

  • Engineer Approved & Stamped Full Sized 24" x 36" Blueprints
  • Suitable for High School Shop & Ag Classes, Industry, & Do-it-yourselfers
  • Detailed Cut List w/ Full Bill of Materials & Welding Tips
  • Tailored TK Trailer Kit to ensure all the right parts for the plan all packaged up for your convenience.

Trailer parts kit specifically made for this plan is available in the option above.

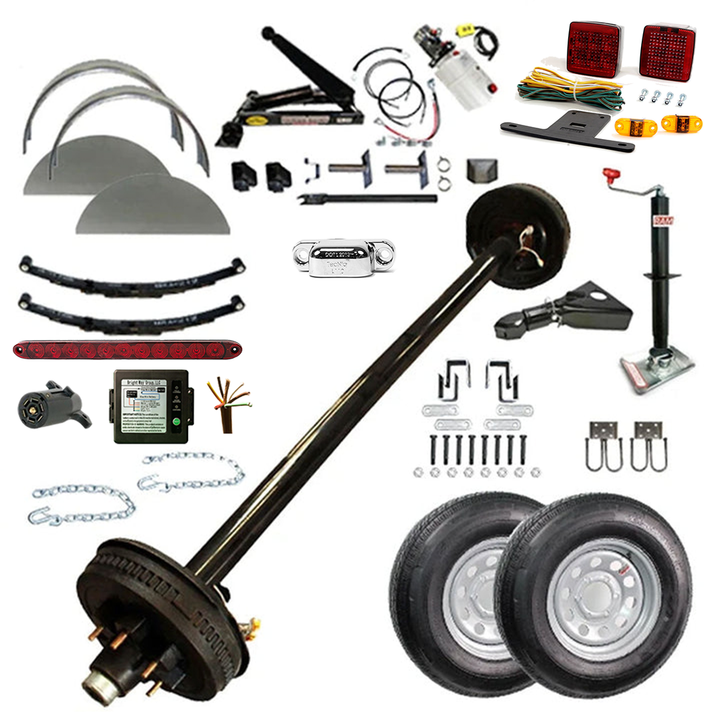

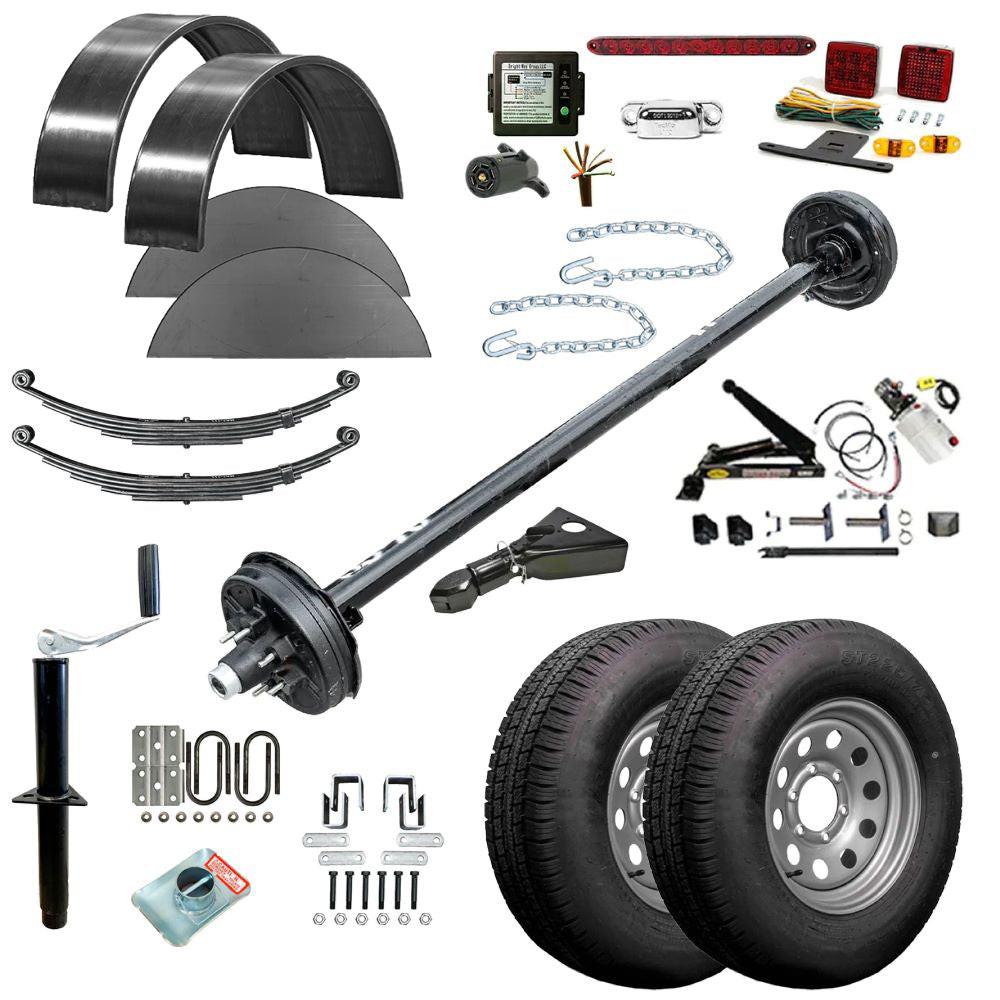

What's Included with 3.5K Trailer Kit:

  • 1 - 3.5k Trailer Axle - 3500 lb Idler 5x4.5 lug 73/58
  • 2 - 4 Leaf Trailer Double Eye Spring for 3500 lb Axles
  • 1 - Trailer U-bolt kit for 3500 lb Axles
  • 1 - Double Eye Single Axle Hanger Kit for 2000-7000 lb Axles
  • 2 - 15" 6 ply Bias TWA - ST 205/75 D15 5x4.5 TWA (Tire Wheel Assemblies) - Wheel Color: Silver/Gray Finish
  • 2 - Single Axle 9x32 Smooth Steel Rolled Fender
  • 2 - Single Axle 9x32 Smooth Steel Fender Back
  • 1 - 7K A-Frame Cast Trailer Coupler-7000 lb 2" Bulldog Style
  • 1 - A-Frame 5k Trailer Jack 5000 lb Top Wind
  • 1 - Trailer Jack Footplate
  • 2 - Silver Trailer Safety Chain - 1/4x31" (5k Capacity)
  • 1 - LED Light Kit
  • 1 - License Plate Light-Rectangular
  • 1 - PH-310 Hoist KIT
  • 1 - 7 Way Plug
  • 3.6 - 6 way cable 14 gauge (per 10 foot)
  • 1 - Sealed ID Light Bar - 3 Red Lights
  • 1 - AD08 Dump Bed Master Plan Blueprint

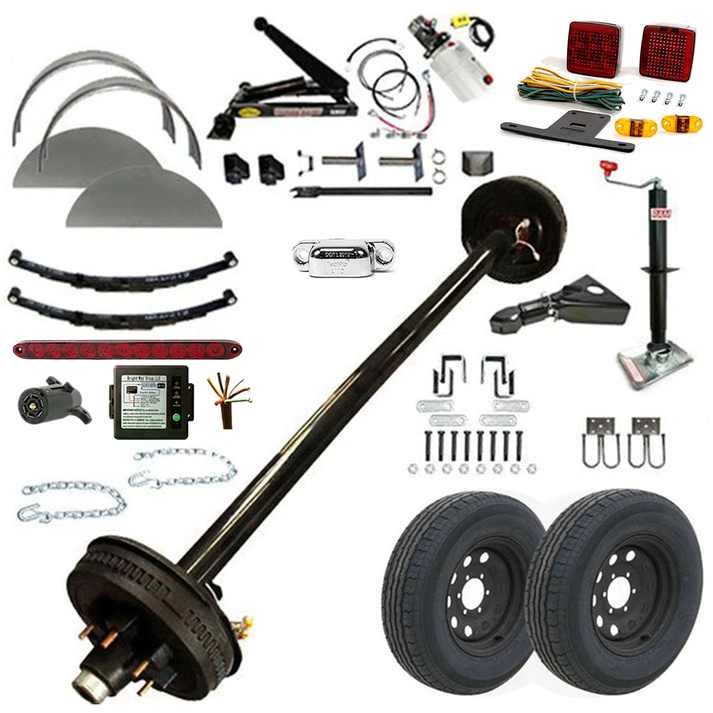

What's Included with 5.2K Trailer Kit:

  • 1 - 5k 5.2k Trailer Axle - 5000 5200 lb Electric Brake 6 lug (73/58)
  • 2 - 5 Leaf Trailer Double Eye Spring for 6000 lb Axles
  • 1 - Trailer U-bolt kit for 5200 - 7000 lb Axles (1/2" Diameter)
  • 1 - Double Eye Single Axle Hanger Kit for 2000-7000 lb Axles
  • 2 - 15" 10 ply Radial TWA - ST 225/75R15 6x5.5 TWA (Tire Wheel Assemblies) - Wheel Color: Silver/Gray Finish
  • 2 - Single Axle 9x32 Smooth Steel Rolled Fender
  • 2 - Single Axle 9x32 Smooth Steel Fender Back
  • 1 - 7K A-Frame Cast Trailer Coupler-7000 lb 2" Bulldog Style
  • 1 - A-Frame 5k Trailer Jack 5000 lb Top Wind
  • 1 - Trailer Jack Footplate
  • 2 - Silver Trailer Safety Chain - 1/4x31" (5k Capacity)
  • 1 - LED Light Kit
  • 1 - License Plate Light-Rectangular
  • 1 - PH-310 Hoist KIT
  • 1 - 7 Way Plug
  • 3.6 - 6 way cable 14 gauge (per 10 foot)
  • 1 - 12 Volt Trailer Breakaway Kit
  • 1 - Sealed ID Light Bar - 3 Red Lights
  • 1 - AD08 Dump Bed Master Plan Blueprint
