LED Combination Tail Lights -RH - Red

Skip to product information
1 of 3

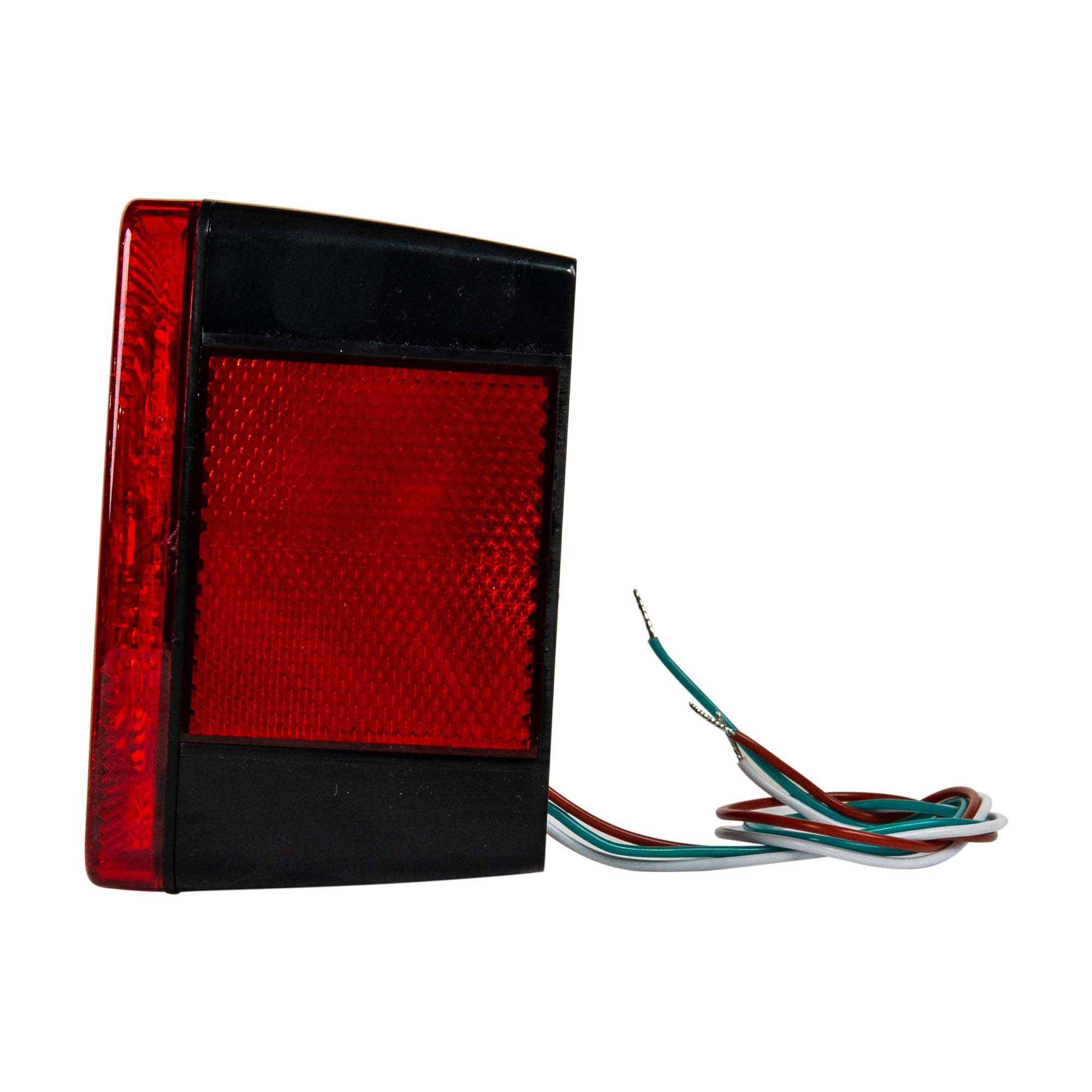

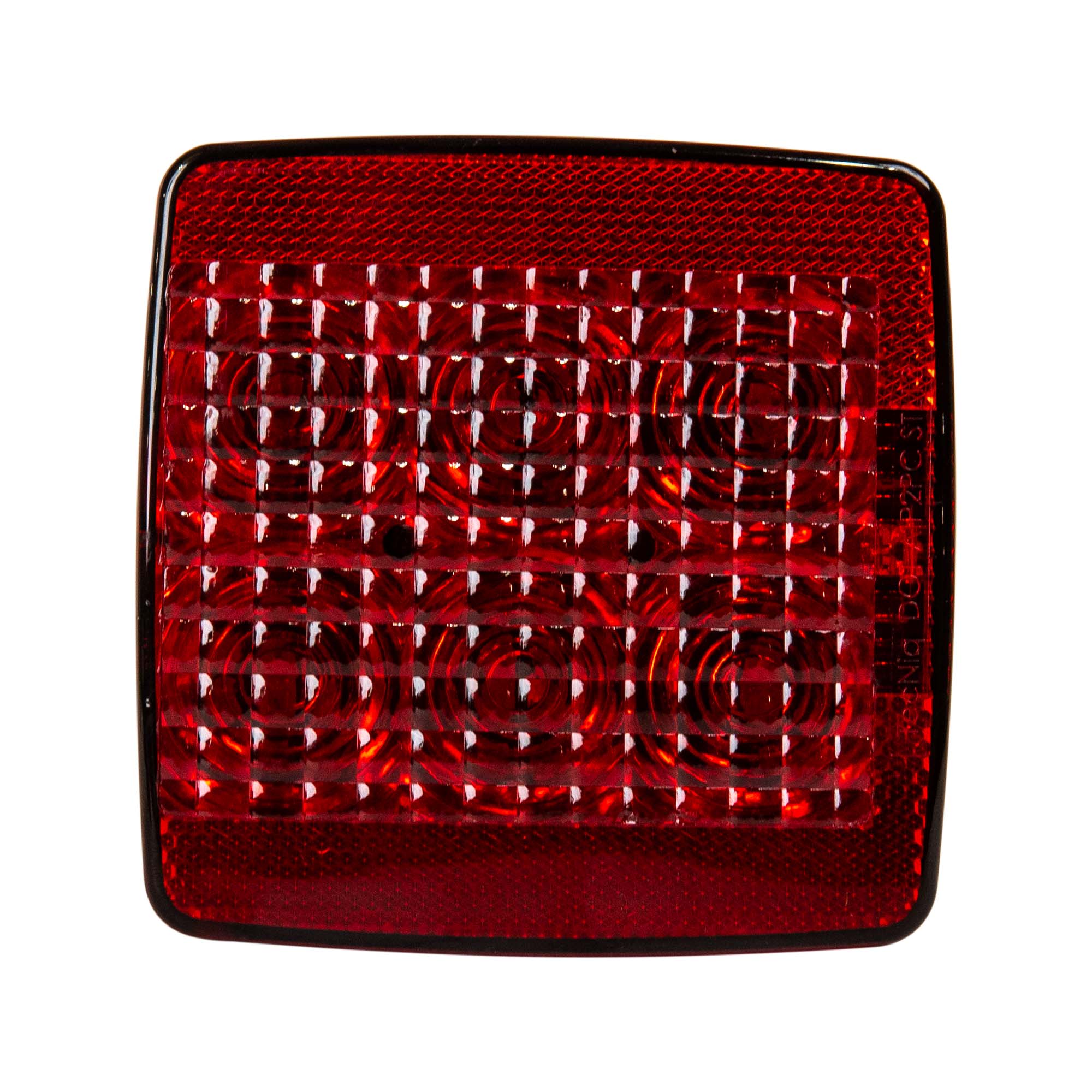

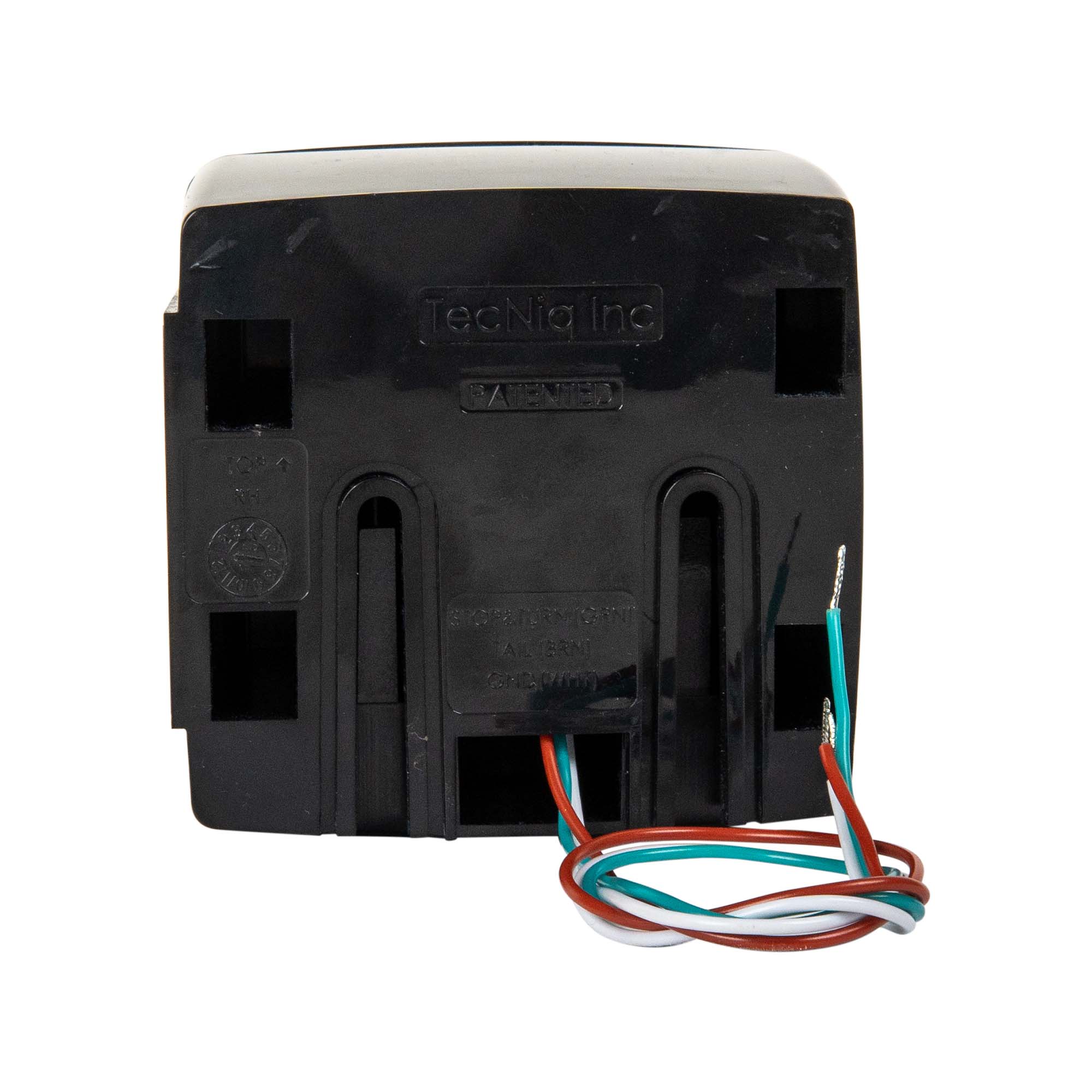

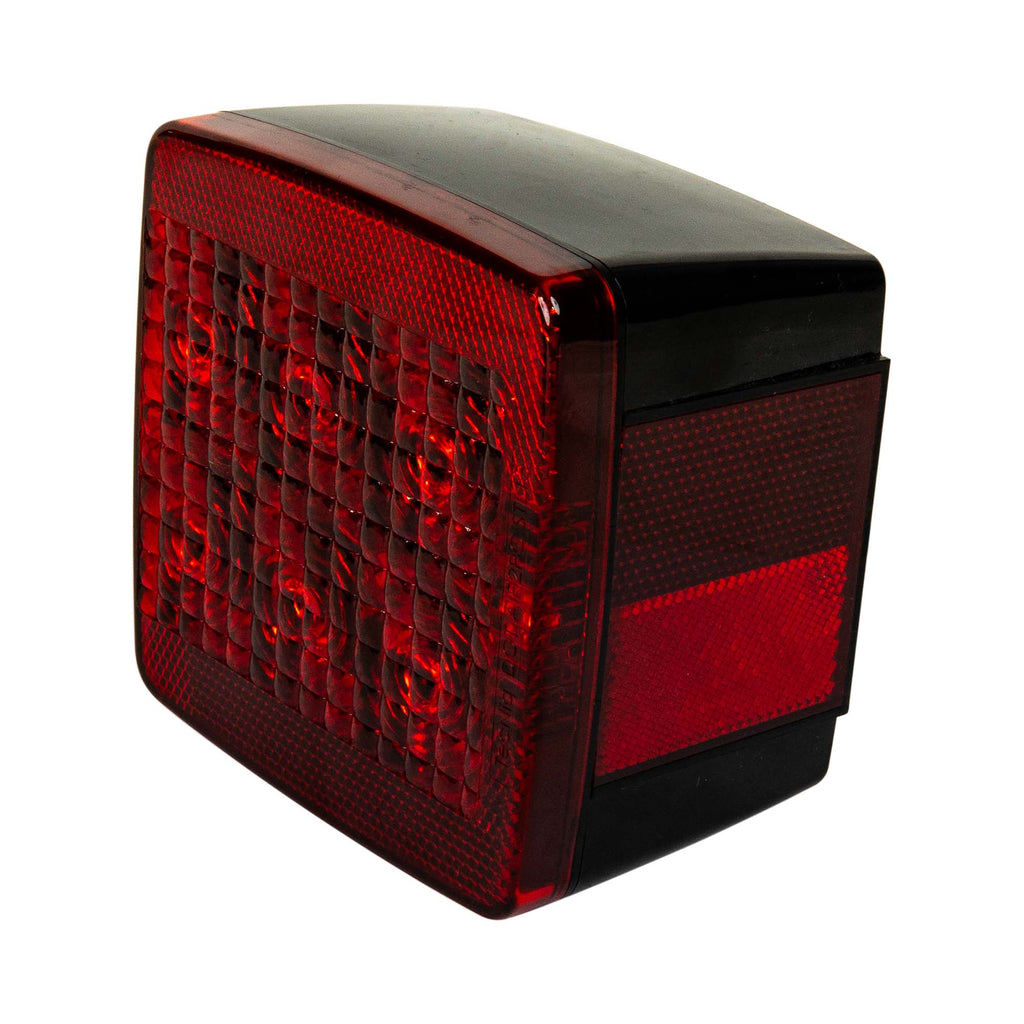

LED Combination Tail Lights -RH - Red

LED Combination Tail Lights -RH - Red

Regular price $39
Regular price $49.99 Sale price $39
Sale Sold out

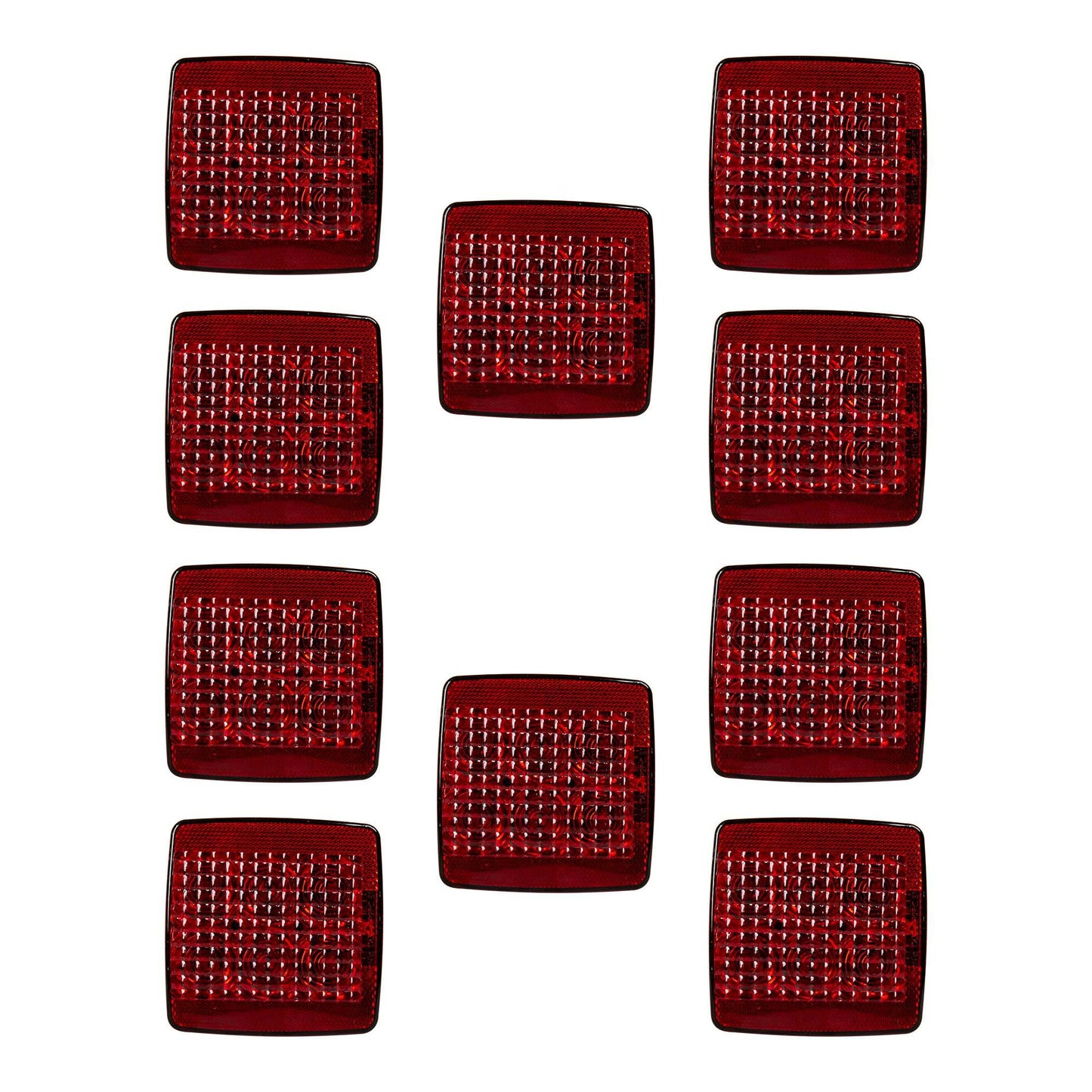

Quantity Options:
View full details
  • Product Information
  • Reviews


  • Side: Right/Passenger
  • LED's: +1 white license plate light on left side
  • 4.55" Length
  • 4.55" Wide
  • 3" Tall
  • Voltage: 9 - 14V DC
  • Current: 0.15A-0.19A Left, 0.05A-0.09A Right, + 0.9A-0.15A Brake
  • Connector Included: 9" Pigtail w/ ground ring
  • Color: Red
  • Mounting: Uses (2) ผ-20 carriage bolts and washers (Included)
  • Wire Colors:
    • White: Ground
    • Brown: Low Intensity
    • Green: Right Stop/Turn
    • Yellow: Left Stop/Turn


  • Multi-Function 4" box tail light
  • TecSeal Urethane Potting - Guaranteed Circuit Board Protection
  • IP68 Rated - Dust and water proof with hermetic seal
  • Durable impact resistant lens
  • Meets all FMVSS 108 requirements for narrow and wide vehicles
  • Reliable performance over 100,000 hours
  • Fits standard mounting as a direct replacement
  • Functions include : Stop, Turn, Tail, Clearance, Side marker, Side Reflector, Rear Reflector, License Plate Light (Left)
