Difficulty Level: Beginner (14 Easy How-to Steps)

Specs:

  • Box Size: 5'x8'
  • Gross Capacity: 2000 lbs or 3500 lbs
  • Empty Weight: 615 lbs
  • Empty Tongue Weight: 85 Lbs
  • Frame: Angle Steel
  • Deck: Wood
  • **DOES NOT INCLUDE STEEL FRAME/TUBING, PLYWOOD, OR FLOORING**

Features:

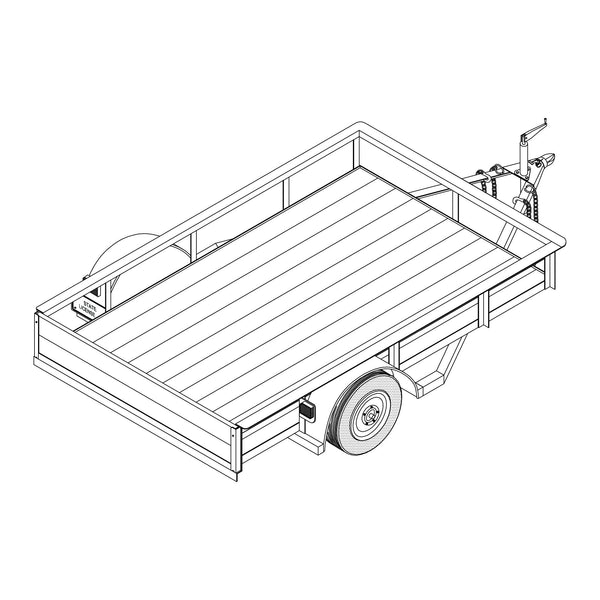

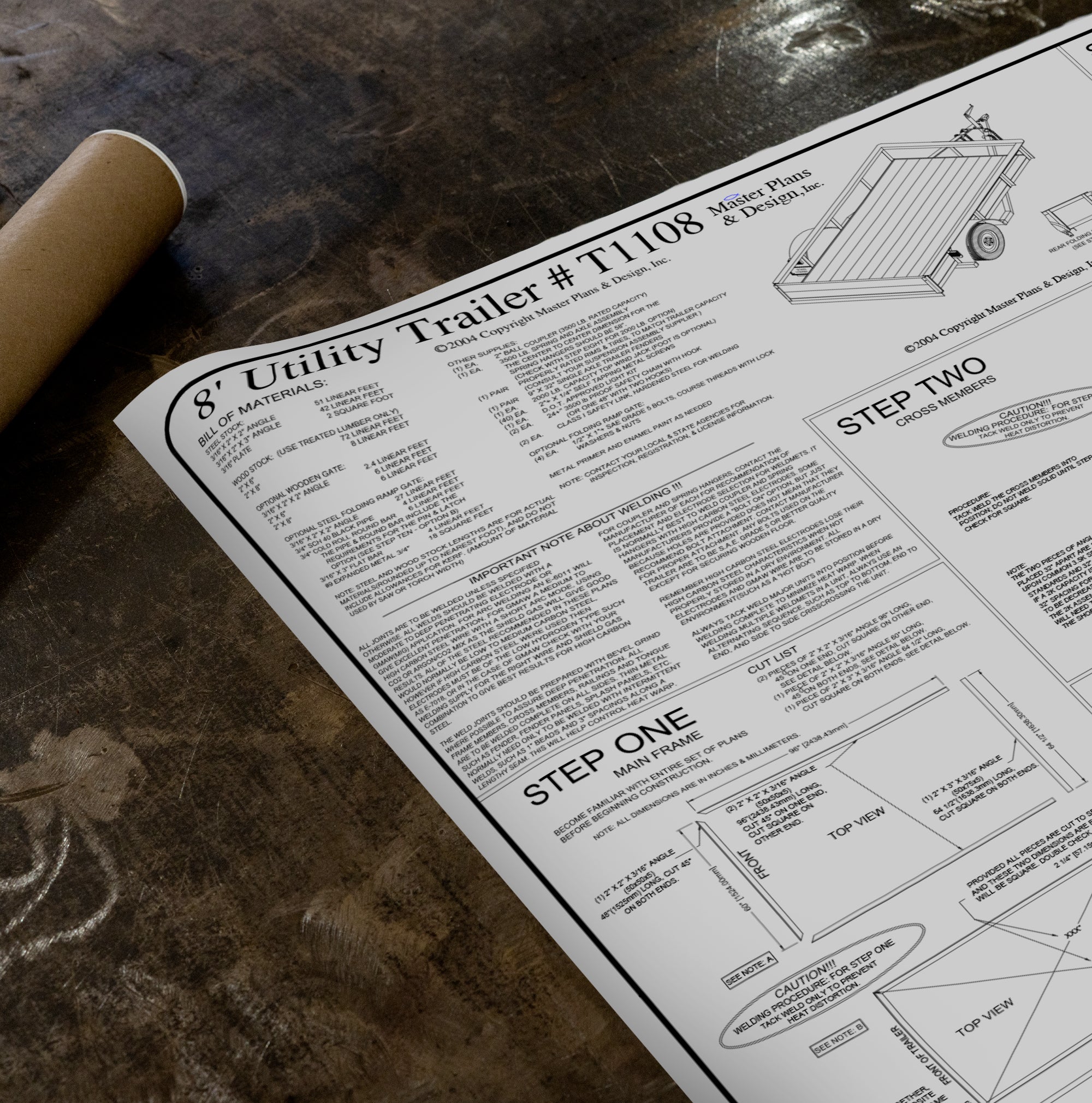

  • Engineer Approved & Stamped Full Sized 24" x 36" Blueprints
  • Suitable for High School Shop & Ag Classes, Industry, & Do-it-yourselfers
  • Detailed Cut List w/ Full Bill of Materials & Welding Tips
  • Tailored TK Trailer Kit to ensure all the right parts for the plan all packaged up for your convenience.
 Trailer parts kit specifically made for this plan is available in the option above.

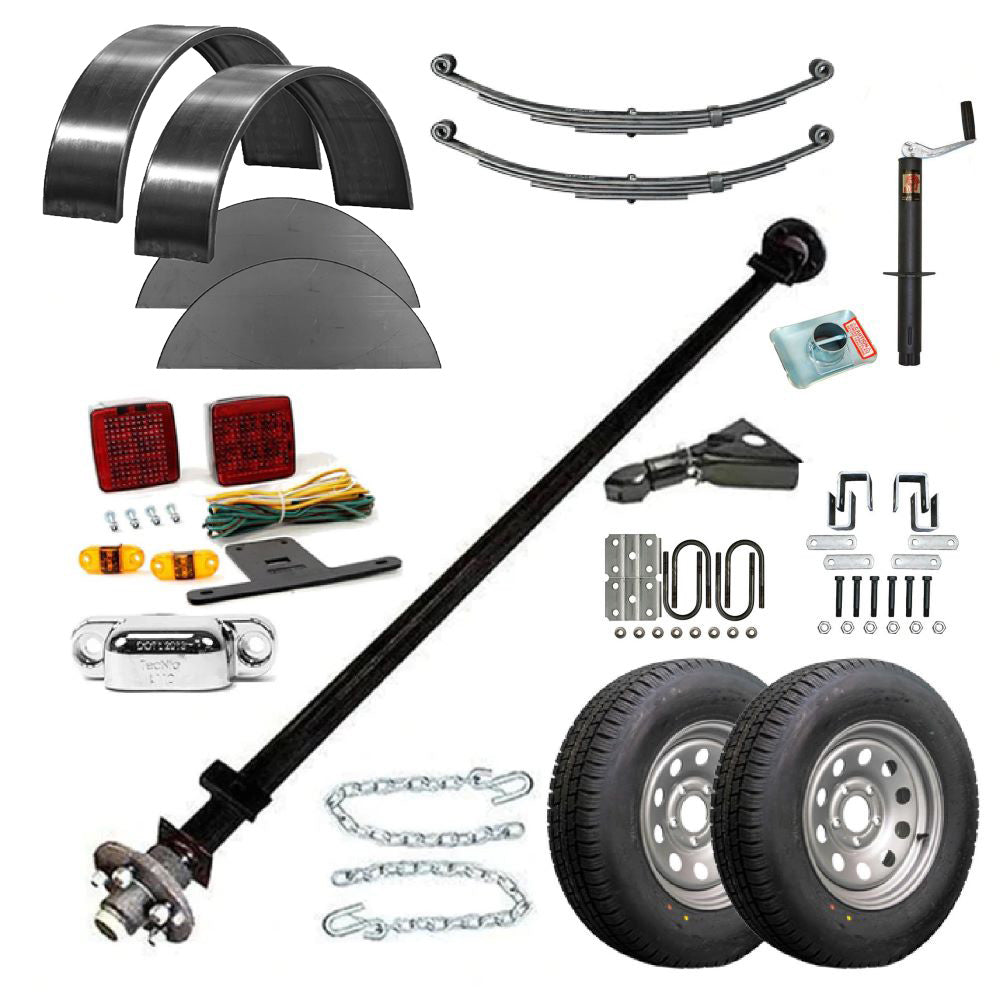

What's Included with 2K Trailer Kit:

  • 1 - 2k Trailer Axle - 2000 lb Idler 5 lug (71/58)
  • 1 - Trailer U-bolt kit for 2000 lb Axles
  • 1 - Double Eye Single Axle Hanger Kit for 2000-7000 lb Axles
  • 2 - 3 Leaf Trailer Double Eye Spring for 2000 lb Axles
  • 2 - 13" 6 ply Radial TWA - ST 175/80R13 - 5x4.5 (SM) TWA (Tire Wheel Assemblies) - Wheel Color: Silver/Gray Finish
  • 2 - Single Axle 9x32 Smooth Steel Rolled Fender
  • 2 - Single Axle 9x32 Smooth Steel Fender Back
  • 1 - 5K A-Frame Trailer Coupler - 5000 lb 2" Atwood Style
  • 1 - A-frame 2k Trailer Jack - 2000 lb Top Wind
  • 1 - Trailer Jack Footplate
  • 1 - LED Light Kit
  • 2 - Silver Trailer Safety Chain - 1/4x31" (5k Capacity)
  • 1 - T1108 Utility Trailer Master Plan Blueprint

What's Included with 3.5K Trailer Kit:

  • 1 - 3.5k Trailer Axle - 3500 lb Idler 5x4.5 lug 73/58
  • 1 - Trailer U-bolt kit for 3500 lb Axles
  • 1 - Double Eye Single Axle Hanger Kit for 2000-7000 lb Axles
  • 2 - 4 Leaf Trailer Double Eye Spring for 3500 lb Axles
  • 2 - 15" 6 ply Bias TWA - ST 205/75 D15 5x4.5 TWA (Tire Wheel Assemblies) - Wheel Color: Silver/Gray Finish
  • 2 - Single Axle 9x32 Smooth Steel Rolled Fender
  • 2 - Single Axle 9x32 Smooth Steel Fender Back
  • 1 - 7K A-Frame Cast Trailer Coupler-7000 lb 2" Bulldog Style
  • 1 - A-Frame 5k Trailer Jack 5000 lb Top Wind
  • 1 - Trailer Jack Footplate
  • 1 - LED Light Kit
  • 2 - Silver Trailer Safety Chain - 1/4x31" (5k Capacity)
  • 1 - T1108 Utility Trailer Master Plan Blueprint
