Trailer 3 Leaf Double Eye Spring Suspension and Single Axle Hanger Kit for 1 3/4" Tube - 2000 Pound Axles
1
/
of
3
Trailer 3 Leaf Double Eye Spring Suspension and Single Axle Hanger Kit for 1 3/4" Tube - 2000 Pound Axles
SKU : 02DE-SUS1HNG-KT
Regular price
$125
Regular price
$149
Sale price
$125
Unit price
/
per
Estimated Shipping Widget will be displayed here! (with custom color)


- Product Information
- Reviews
When ordering raw materials, you can expect minor rust and oils that will need to be cleaned upon arrival to you.

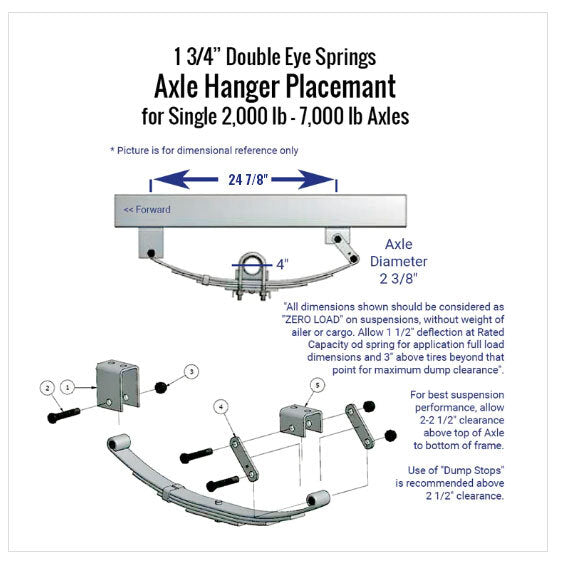

Contents:
- (2) 3 Leaf 25 1/4" x 1.75" Trailer Double Eye Spring for 2000 lb Axles
- (4) 4-1/4" Long U-bolts
- (2) U-bolt Tie Plates for 1-3/4" Spring
- (8) 3/8" Hex Nuts
- L=4 1/4" A=1 3/4" D=3/8"
- (2) 1-1/2" tall front hangers
- (2) 7/8" tall rear hangers
- (4) 3-1/8" long shackle straps
- (6) 3" long x 9/16" diameter shackle bolts
- (6) 9/16" diameter lock nuts
Features:
- Spring Specs: Number of leaves: 3, 1.75" Wide, 25.25" Long (from center to center of the eyes), 11/16" Eye Diameter, Nylon Bushing, 1000 lb capacity each, Axle capacity: 2,000 lbs.
- This kit has everything you need to mount your trailer's 1-3/4" round axle.
- Spring seats required for mounting axle to leaf spring sold separately.
- Will replace Suspension on Axle Brands: Dexter, AlKO, Hayes, Rockwell American, Quality Axles.
