Trailer 4 Leaf Double Eye Spring Suspension and Tandem Axle Hanger Kit for 2 3/8" Tube - 3500 Pound Axle

SKU : 35DE-SUS2HNG-KT
$299.99
$299.99
Sale Sold out

Estimated Shipping Widget will be displayed here! (with custom color)

View full details
  • Product Information
  • Reviews

When ordering raw materials, you can expect minor rust and oils that will need to be cleaned upon arrival to you.

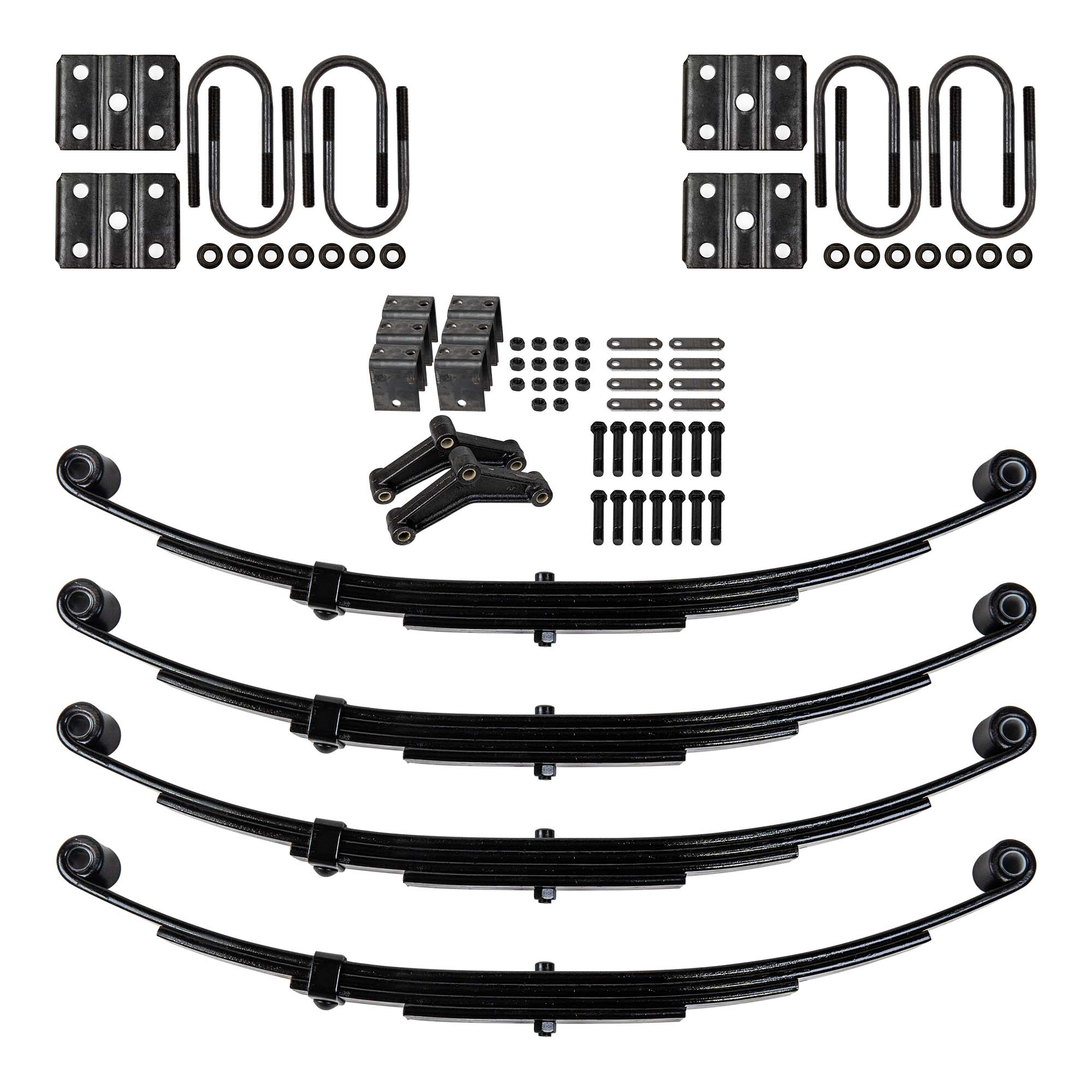

Contents:

  • (4) 4 Leaf 25 1/4" x 1 3/4" Trailer Double Eye Spring for 3500 lb Axles
  • (8) 5-1/2" Long U-bolts
  • (4) U-bolt Tie Plates for 1-3/4" Spring
  • (16) 1/2"-20 Hex Nuts
  • L=5 1/2" A=2 3/8" D=1/2"
  • (4) 1-1/2" tall front and rear hangers
  • (2) 2-1/2" tall center hangers
  • (2) 7-3/4" long triangle equalizers
  • (8) 2-5/8" long shackle straps
  • (14) 3" long x 9/16" diameter shackle bolts
  • (14) 9/16" diameter lock nuts


Features:

  • Spring Specs: Number of leaves: 4, 1.75" Wide, 25.25" Long (from center to center of the eyes), 9/16" Eye Diameter, Nylon Bushing, 1750 lb capacity each, Axle capacity: 3,500 lbs.
  • This kit has everything you need to mount your trailer's 2-3/8" round axle.
  • Spring seats required for mounting axle to leaf spring sold separately.
  • Will replace Suspension on Axle Brands: Dexter, AlKO, Hayes, Rockwell American, Quality Axles.
  • This kit is for a Tandem axle 3.5k (7K total) setup
