Trailer 5 Leaf Double Eye Spring Suspension and Tandem Axle Hanger Kit for 3" Tubes - 6000 Pound Axles

  • Trailer 5 Leaf Double Eye Spring Suspension and Tandem Axle Hanger Kit for 3" Tubes - 6000 Pound Axles

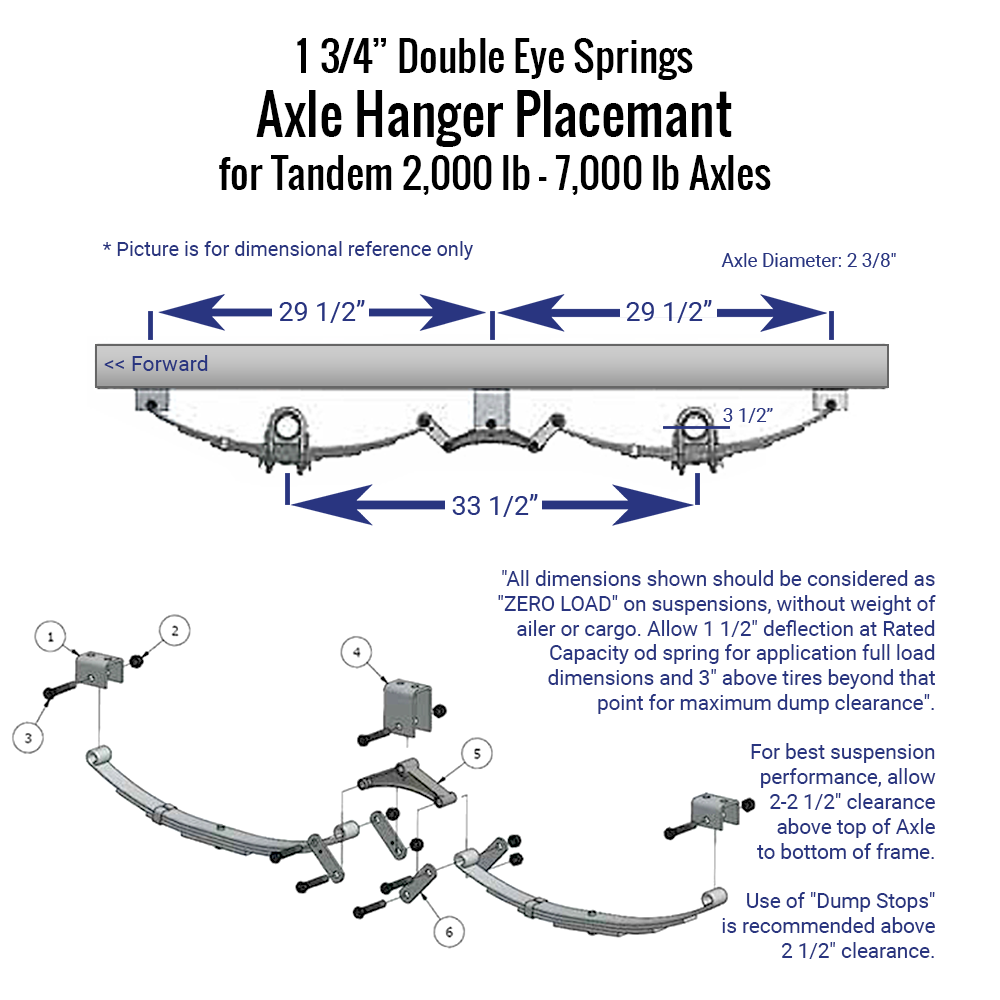

  • Axle Hanger Placement Chart
1 2

Need shopping help?

Talk To Krystal or another Trailer Parts Expert now!

Trailer 5 Leaf Double Eye Spring Suspension and Tandem Axle Hanger Kit for 3" Tubes - 6000 Pound Axles

Trailer 5 Leaf Double Eye Spring Suspension and Tandem Axle Hanger Kit for 3" Tubes - 6000 Pound Axles

SKU : 06DE-SUS2HNG-KT
$349
$379.99 $349
Sale Call for Availability - (833) 416-9396
View full details
  • Product Information
  • Reviews

When ordering raw materials, you can expect minor rust and oils that will need to be cleaned upon arrival to you.

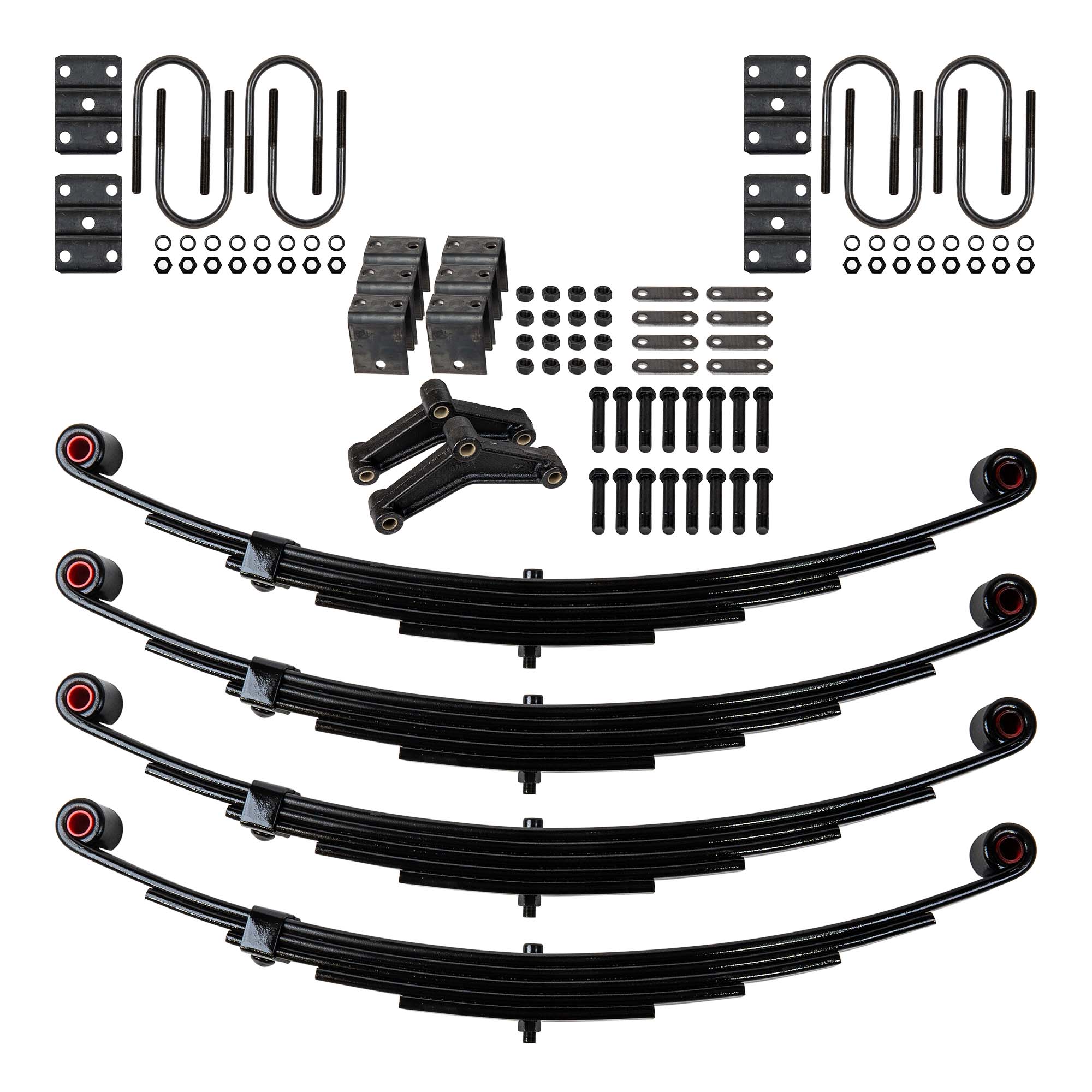

Contents:

  • (4) 5 Leaf 25 1/4" x 1 3/4" Trailer Double Eye Spring for 6000 lb Axles
  • (8) 7" Long U-bolts
  • (4) U-bolt Tie Plates for 1-3/4" or 2" Spring
  • (16) 1/2"-20 Hex Nuts
  • L=7" A=3" D=1/2"
  • (4) 1-1/2" tall front and rear hangers
  • (2) 2-1/2" tall center hangers
  • (2) 7-3/4" long triangle equalizers
  • (8) 2-5/8" long shackle straps
  • (14) 3" long x 9/16" diameter shackle bolts
  • (14) 9/16" diameter lock nuts


Features:

  • Spring Specs: Number of leaves: 5, 1.75" Wide, 25.25" Long (from center to center of the eyes), 9/16" Eye Diameter, Nylon Bushing, 2900 lb capacity each, Axle capacity: 6000 lbs.
  • This kit has everything you need to mount your trailer's 3" round axle.
  • Spring seats required for mounting axle to leaf spring sold separately.
  • Will replace Suspension on Axle Brands: Dexter, AlKO, Hayes, Rockwell American, Quality Axles.
  • This kit is for a Tandem axle 6k (12K total) setup
