When ordering raw materials, you can expect minor rust and oils that will need to be cleaned upon arrival to you.

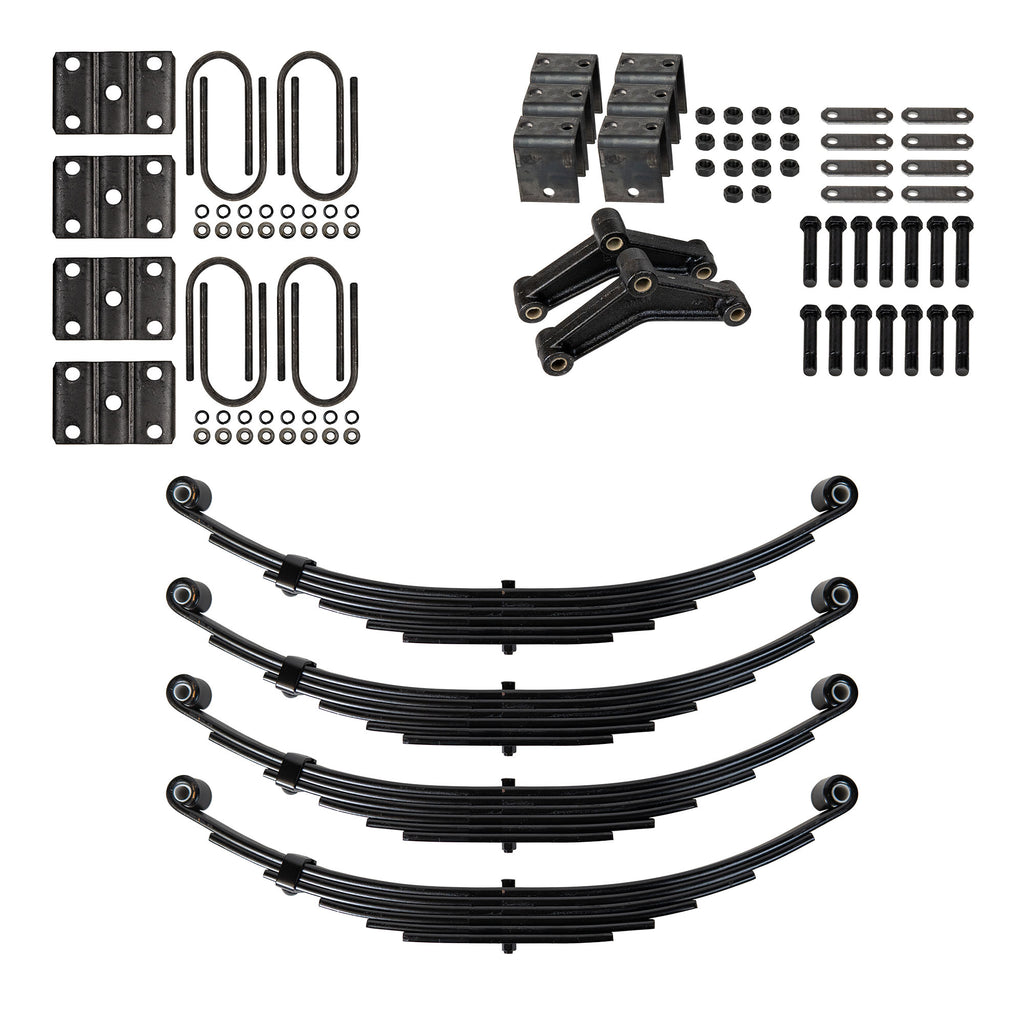

(4) 6 Leaf 25 1/4" x 1 3/4" Trailer Double Eye Spring for 7000 lb Axles
(8) 7" Long U-bolts
(4) U-bolt Tie Plates for 1-3/4" or 2" Spring
(16) 1/2"-20 Hex Nuts
L=7" A=3" D=1/2"
(4) 1-1/2" tall front and rear hangers
(2) 2-1/2" tall center hangers
(2) 7-3/4" long triangle equalizers
(8) 2-5/8" long shackle straps
(14) 3" long x 9/16" diameter shackle bolts
(14) 9/16" diameter lock nuts
Spring Specs: Number of leaves: 6, 1.75" Wide, 25.25" Long (from center to center of the eyes), 9/16" Eye Diameter, Nylon Bushing, 3500 lb capacity each, Axle capacity: 7000 lbs.

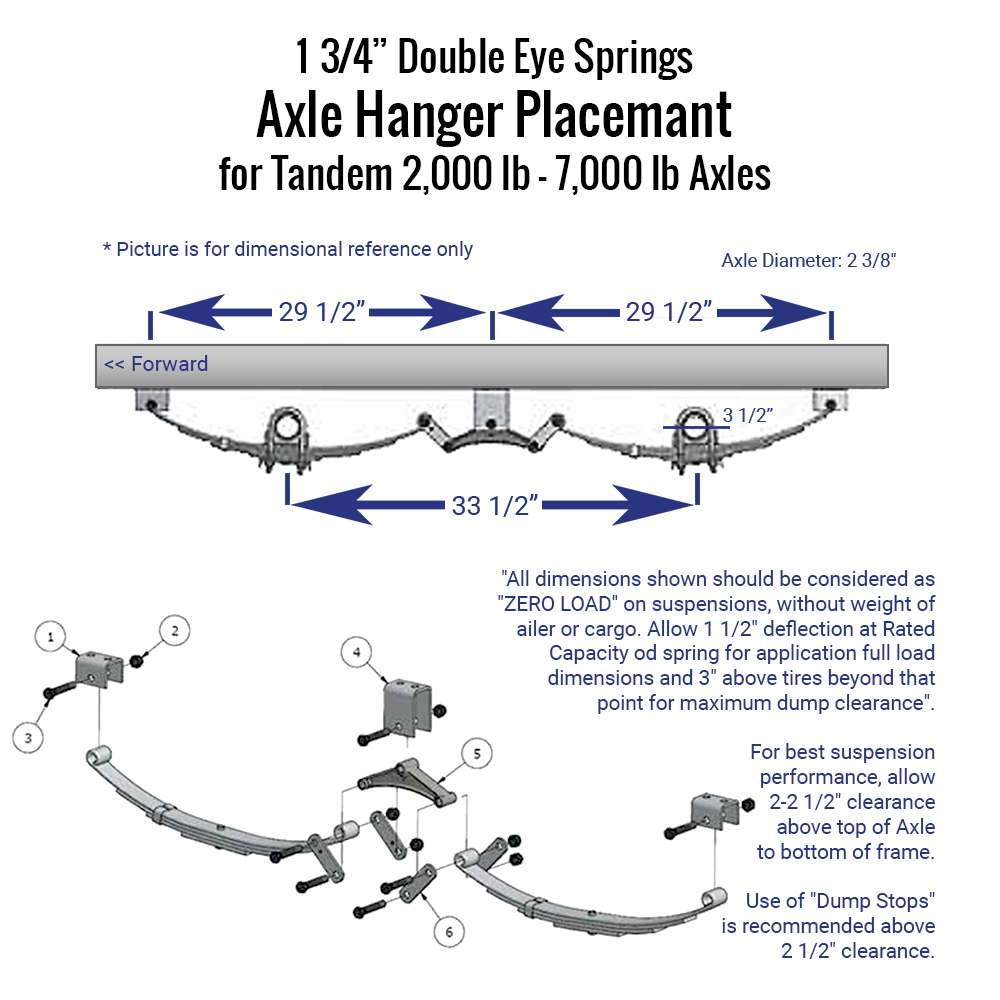

This kit has everything you need to mount your trailer's 3" round axle.
Spring seats required for mounting axle to leaf spring sold separately.
Will replace Suspension on Axle Brands: Dexter, AlKO, Hayes, Rockwell American, Quality Axles.
This kit is for a Tandem axle 7K (14K total) setup
