When ordering raw materials, you can expect minor rust and oils that will need to be cleaned upon arrival to you.

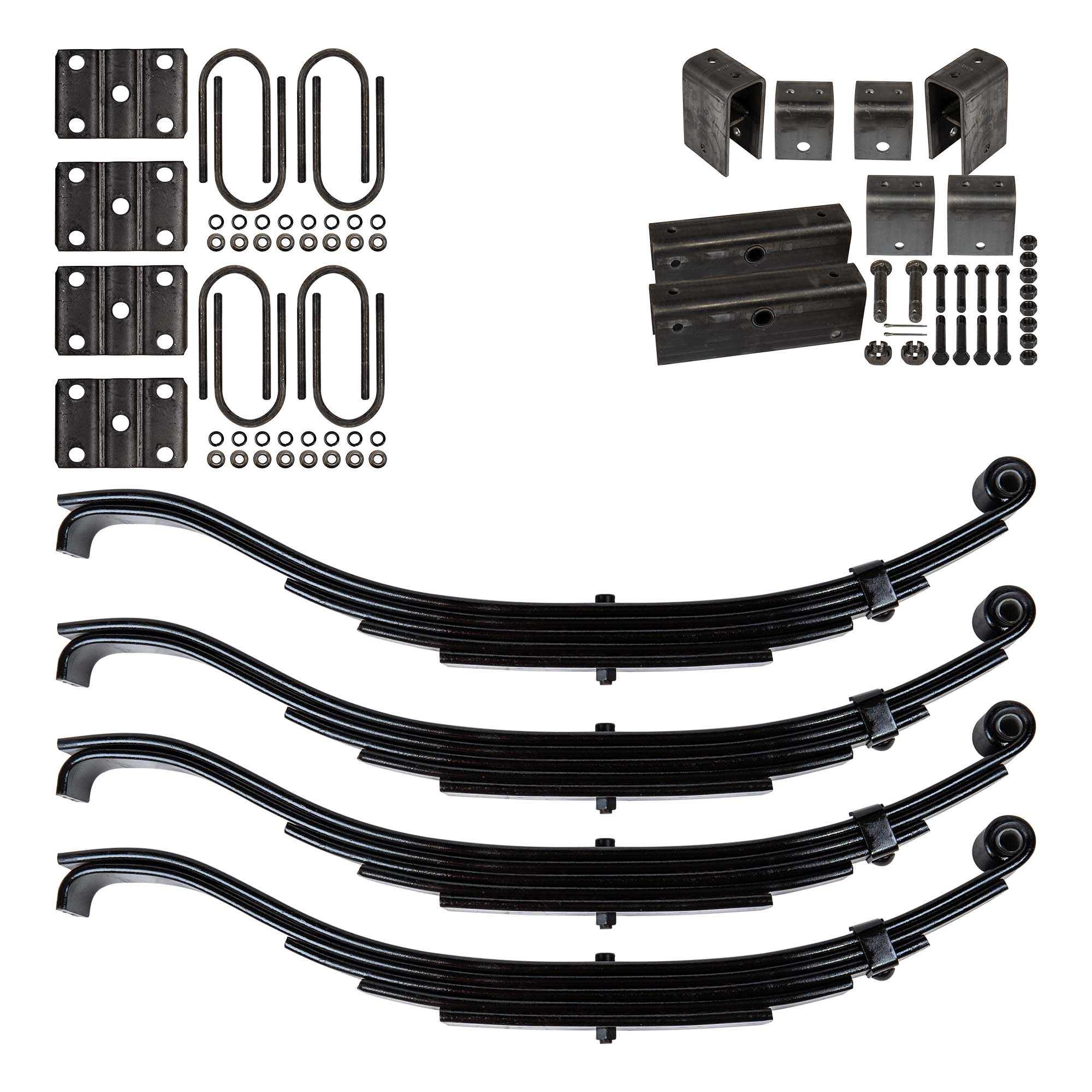

(4) 5 Leaf slipper Spring for 7000 lb Axles
(8) 7" Long U-bolts
(4) U-bolt Tie Plates for 1-3/4" or 2" Spring
(16) 1/2"-20 Hex Nuts
L=7" A=3" D=1/2"
(2) 3-3/4" tall front hangers
(2) 3-3/8" tall center hangers
(2) 5-1/6" tall rear hangers
(2) 12" long straight equalizers
(8) 3-1/2" long x 9/16" diameter shackle bolts
(8) 9/16" diameter locknuts
(2) 4-11/16" long x 7/8" diameter equalizer bolts
(2) 7/8" diameter castle nuts
(2) 2-1/4" long cotter pins
Spring Specs: Number of leaves: 5, 2" Wide, 26.5" Long (from center eye to end of hook), 9/16" Eye Diameter, Nylon Bushing, 3500 lb capacity each, Axle capacity: 7000 lbs.
This kit has everything you need to mount your trailer's 3" round axle.
Spring seats required for mounting axle to leaf spring sold separately.
Will replace Suspension on Axle Brands: Dexter, AlKO, Hayes, Rockwell American, Quality Axles.
This kit is for a Tandem axle 7K (14K total) setup
