Trailer 5 Leaf Slipper Spring Suspension and Tandem Axle Hanger Kit for 5" Tubes - 10,000 Pound Axles

  •
1 2

Trailer 5 Leaf Slipper Spring Suspension and Tandem Axle Hanger Kit for 5" Tubes - 10,000 Pound Axles

SKU : 10SL-SUS2HNG-KT
$1,079.99
$1,079.99
Sale Sold out

Estimated Shipping Widget will be displayed here! (with custom color)

View full details
  • Product Information
  • Reviews

When ordering raw materials, you can expect minor rust and oils that will need to be cleaned upon arrival to you.

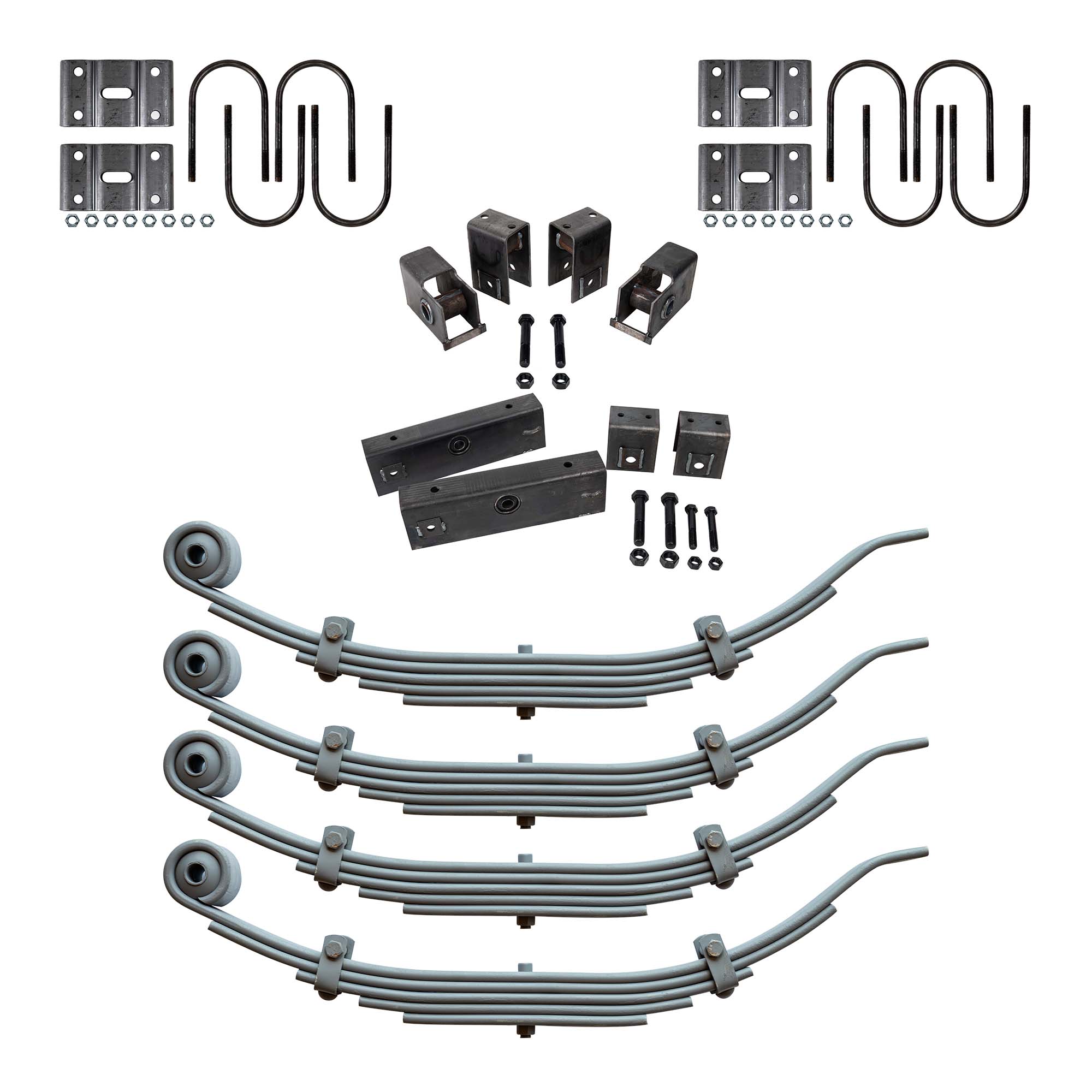

Contents:

  • (4) 5 Leaf 30 1/2" x 2.5" wide heavy duty slipper Spring for 10,000 lb Axles
  • (8) 9" Long U-bolts
  • (4) U-bolt Tie Plates for 2.5" Springs
  • (16) 5/8"-18 Hex Nuts
  • (16) 5/8" Lock Washers
  • L=9" A=5" D=5/8"
  • (2) 5.250" tall front hangers
  • (2) 4.5" tall center hangers
  • (2) 4.5" tall rear hangers
  • (2) 18.38" long straight equalizers
  • (4) 3/4" long x 4-1/4" diameter spring eye hex bolts
  • (4) 3/4" diameter hex locknuts
  • (2) 1"-8 x 5-1/2" equalizer bolts
  • (2) 1"-8 diameter hex locknuts


Features:

  • Spring Specs: Number of leaves: 5, 2.5" Wide, 30.5" Long (from center eye to end of hook), 9/16" Eye Diameter, Nylon Bushing, 5000 lb capacity each, Axle capacity: 10000 lbs.
  • This kit has everything you need to mount your trailer's 5" round axle.
  • Spring seats required for mounting axle to leaf spring sold separately.
  • Will replace Suspension on Axle Brands: Dexter, AlKO, Hayes, Rockwell American, Quality Axles.
  • This kit is for a Tandem axle 10K (20K total) setup

  • Our Trailer Experts are here to help!
