Utility Trailer LED Light Kit

Utility Trailer LED Light Kit

SKU : LEDLKT-UTILITY
Regular price $109
Regular price $119.99 Sale price $109
Sale Sold out
Quantity Options:
View full details
  • Product Information
  • Reviews

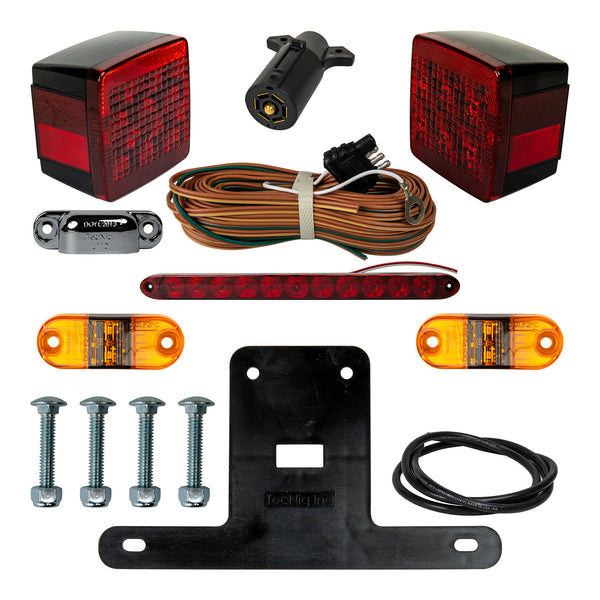

What's Included:

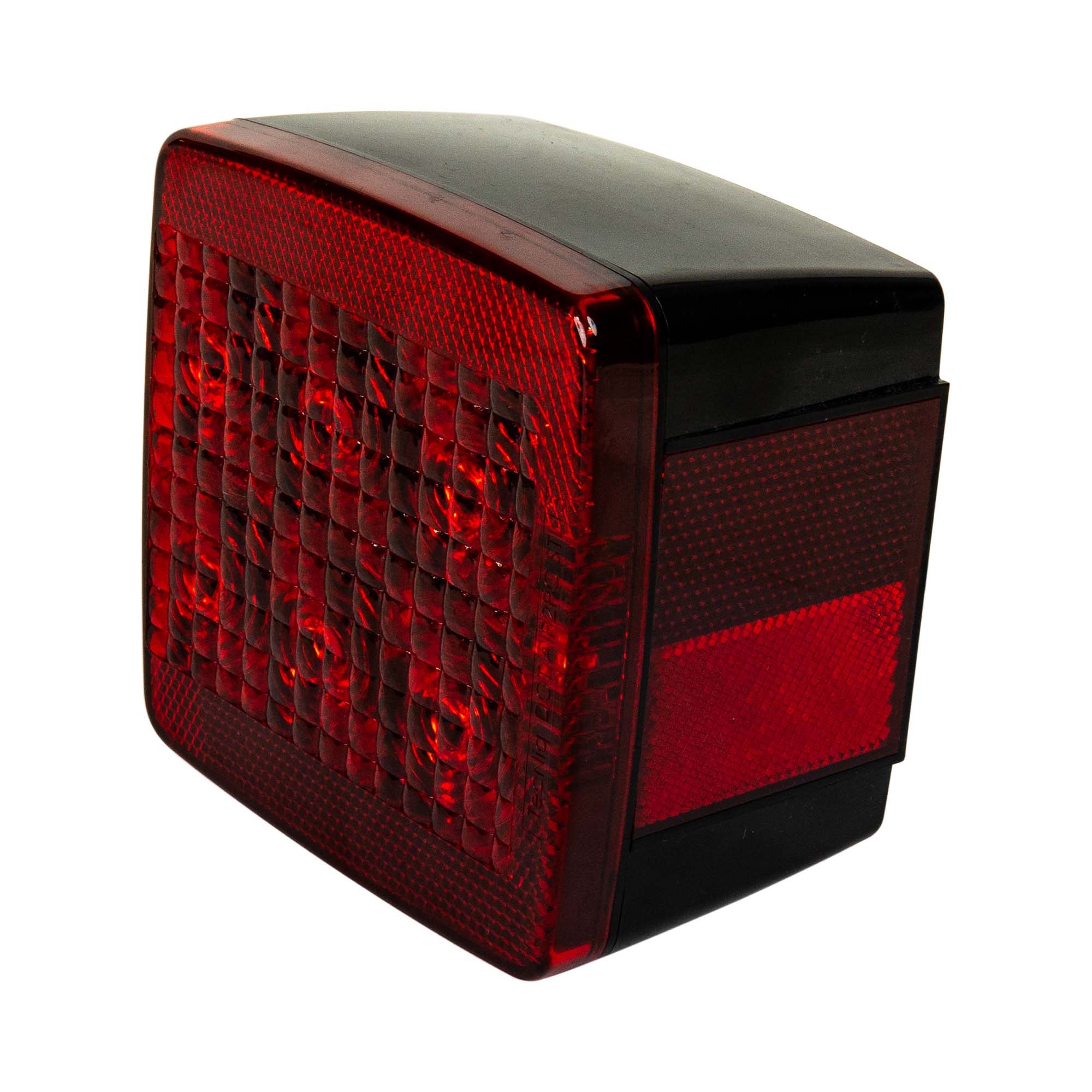

  • 1 - LED 7 Function 4" Box Tail Light Right Side With Pig Tail

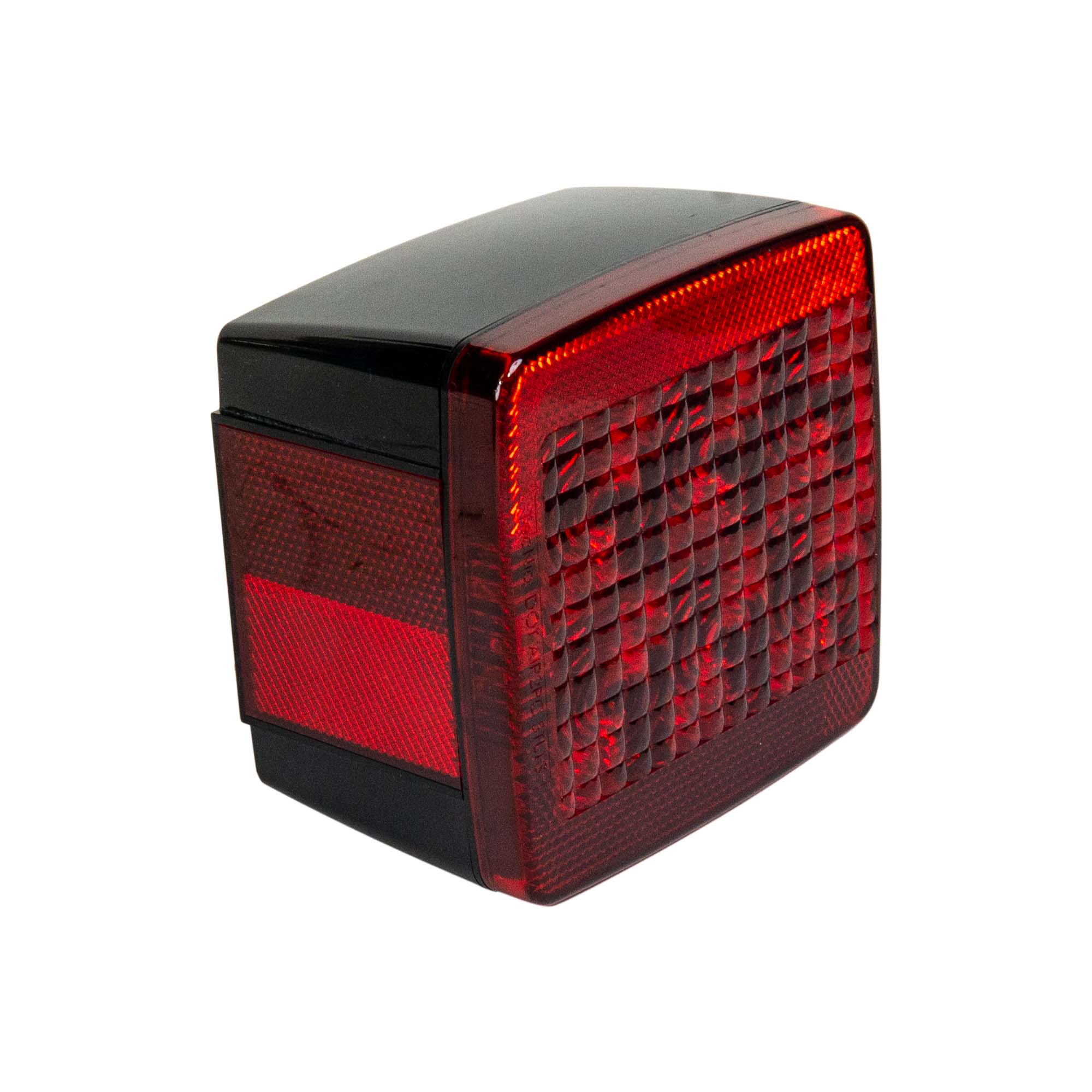

  • 1 - LED 7 Function 4" Box Tail Light Left Side With Pig Tail

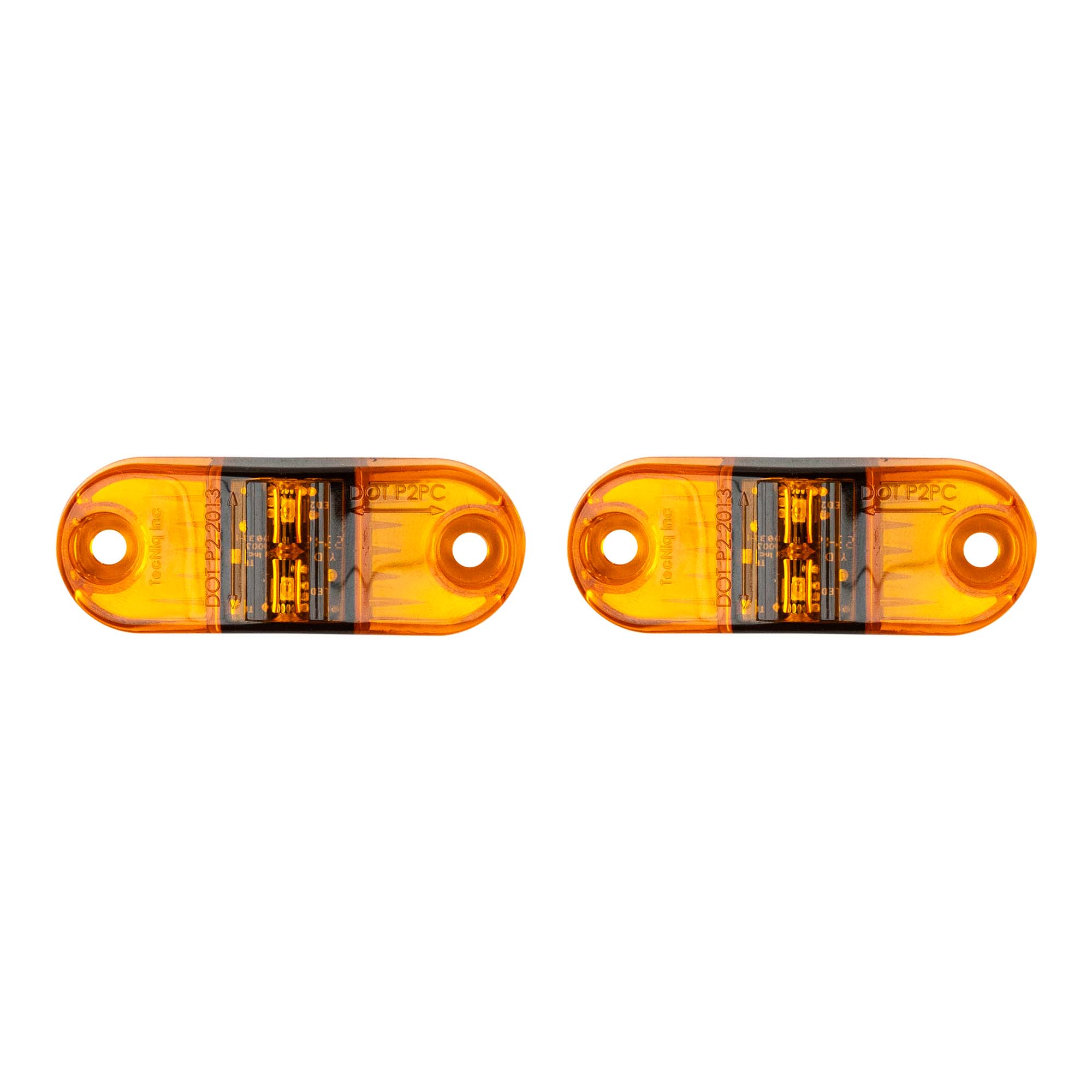

  • 2 - LED Amber P2/PC Side marker Amber Lens With 6" Pigtail
  • 1 - LED Sealed ID Light Bar Red Low Profile ID Bar Red Lens (80")

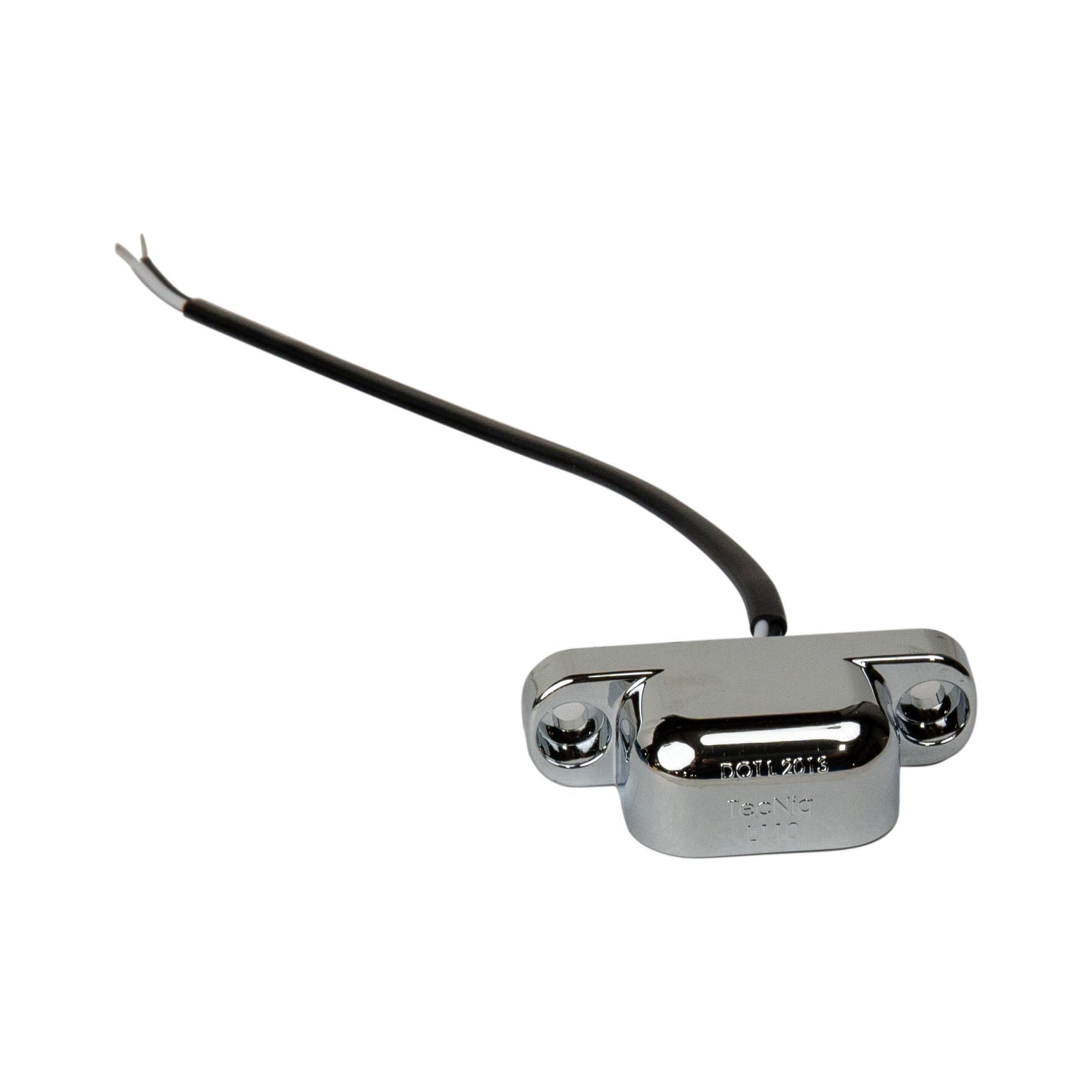

  • 1 - LED DOT Rated License Plate Light

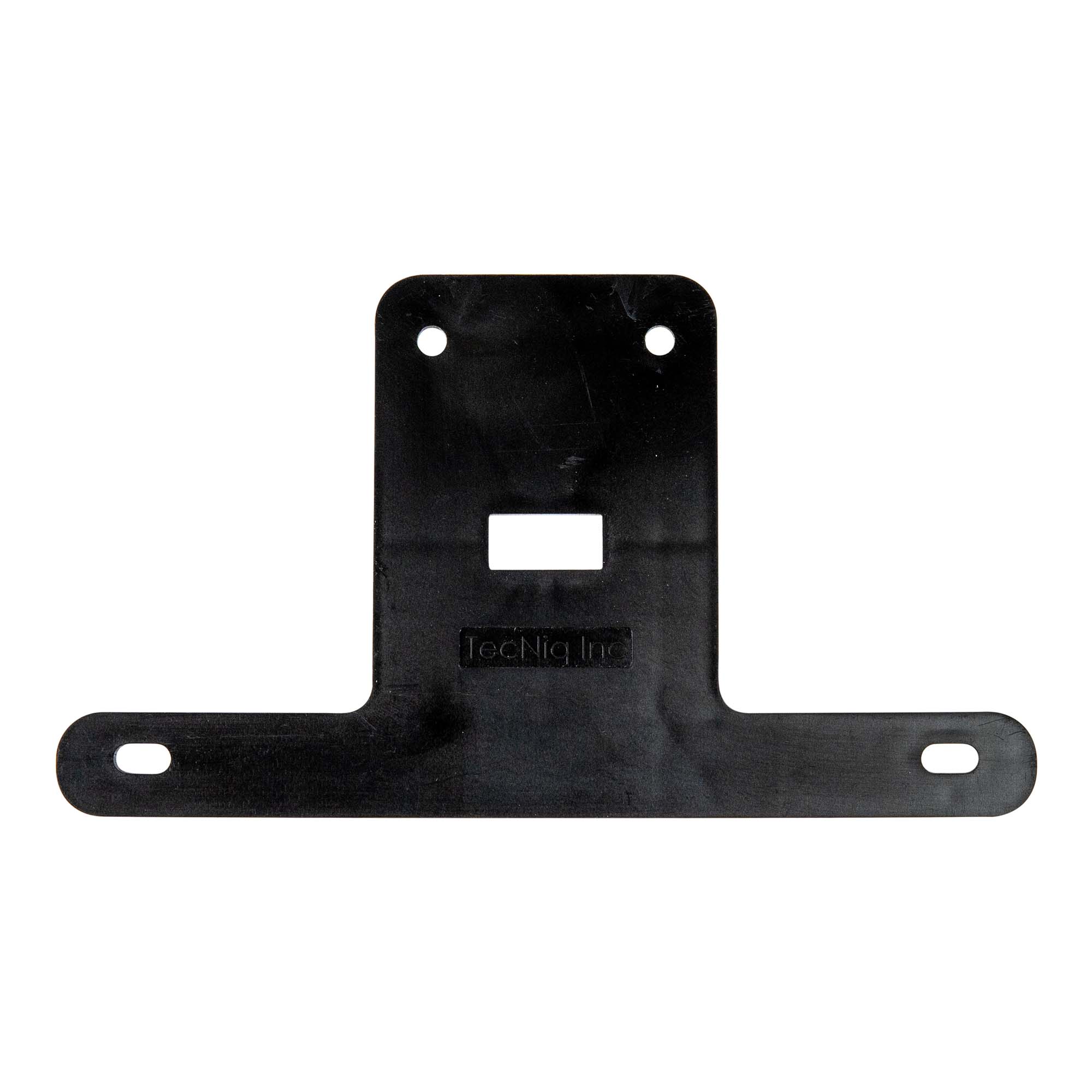

  • 1 - Plastic License Plate Bracket

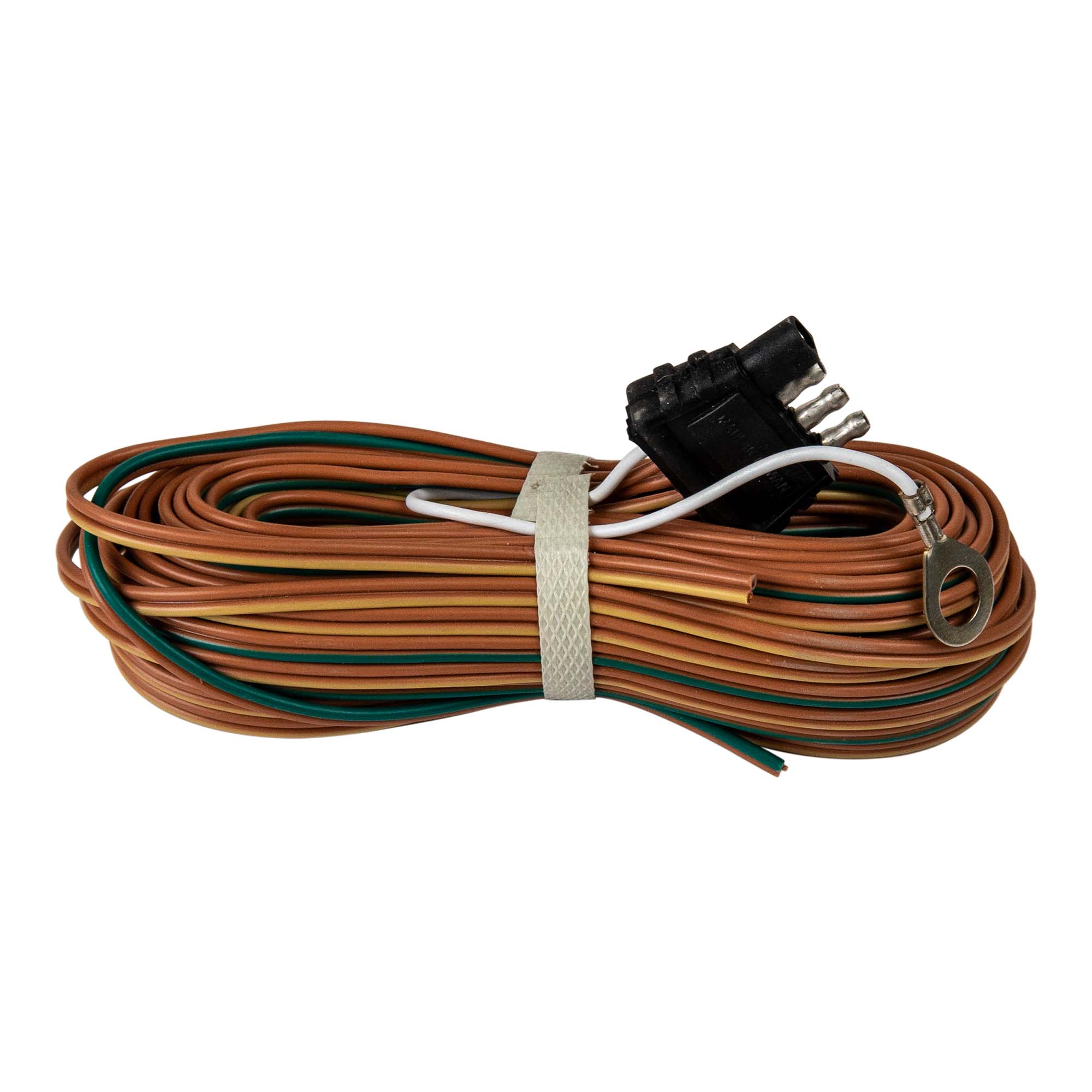

  • 1 - 25 Foot 4 Flat Wishbone Wiring Harness
  • 1 - 7 Way Plug
  • 18FT - 6 Way Cable - 14 Gauge
  • 4 - Tail Light Mounting Bolts and Nuts

Features:

  • Traditional style fits many applications
  • TecSeal Urethane Potting - Guaranteed Circuit Board Protection
  • IP68 Rated - Dust and water proof with hermetic seal
  • Durable impact resistant lens
  • Meets all FMVSS 108 requirements for narrow and wide vehicles
  • Reliable performance over 100,000 hours
  • Fits standard mounting as a direct replacement
  • Tail Lights:
  • Functions include
    • Stop
    • Turn
    • Tail
    • Clearance
    • Side marker
    • Side Reflector
    • Rear Reflector
    • License Plate Light (Left)
  • WIRE COLORS: White Ground, Brown Low/License Plate (left), Green (right) High, Yellow (left) High
  • Side marker Lights:
    • Surface mounted PC/P2 rated marker light
    • Automotive exterior lighting grade polycarbonate
    • Wire Colors: White Ground, Red/Amber Positive
  • Light Bar:
    • Can be mounted horizontal, vertical, or at any angle
    • Wire colors: White Ground, Black Positive
  • License Plate Light:
    • Life performance over 50,000 hours
    • Easily mounts using just two screws
    • Wire colors: Bidirectional positive and ground
  • Wire Harness
    • Ergonomic plug, provides grip for easier plug and unplugging from your vehicle
    • The 4-Pin design is an industry standard for taillights, brake lights, and turn lights
    • Bonded wires and molded rubber protect by SAE J-1128 standards
