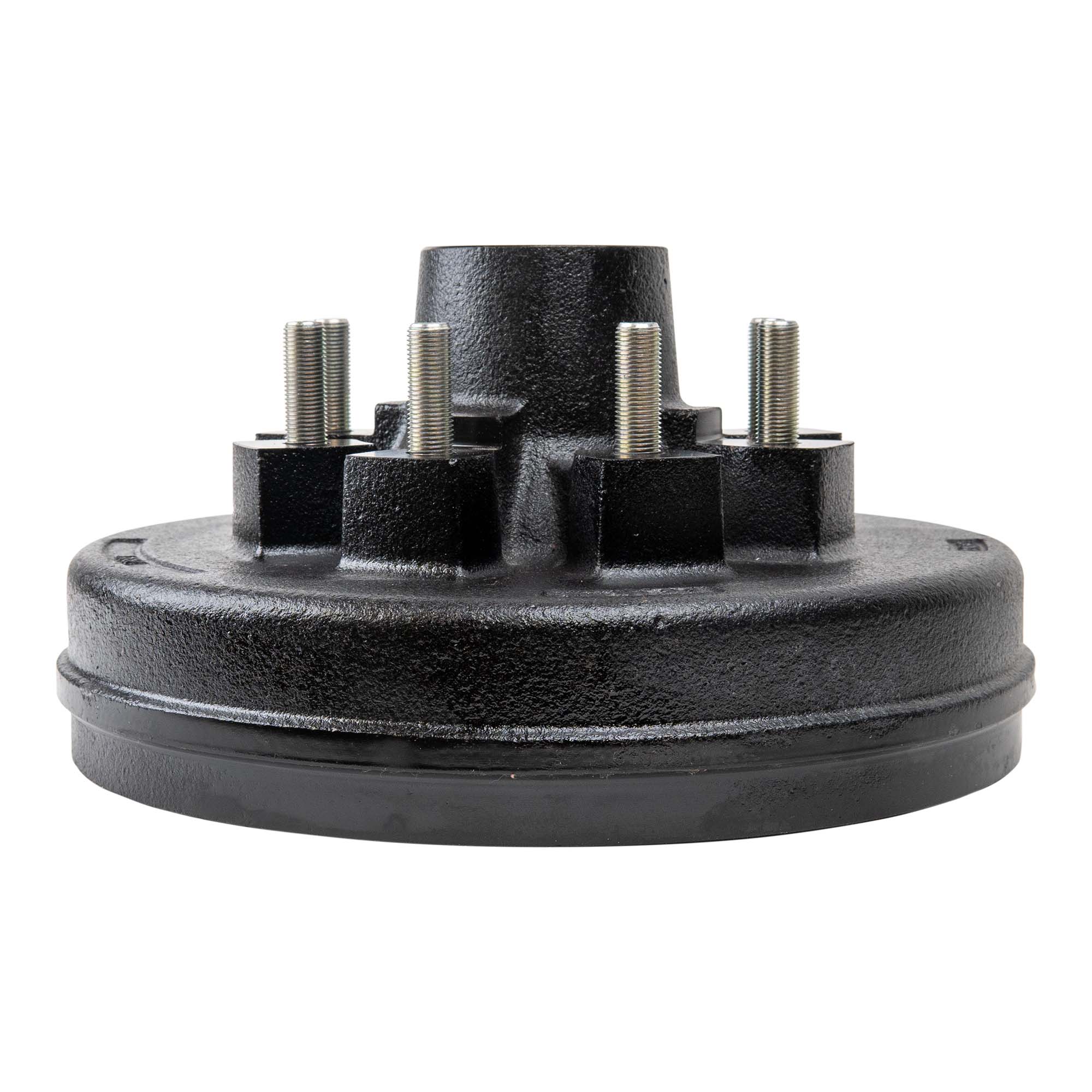

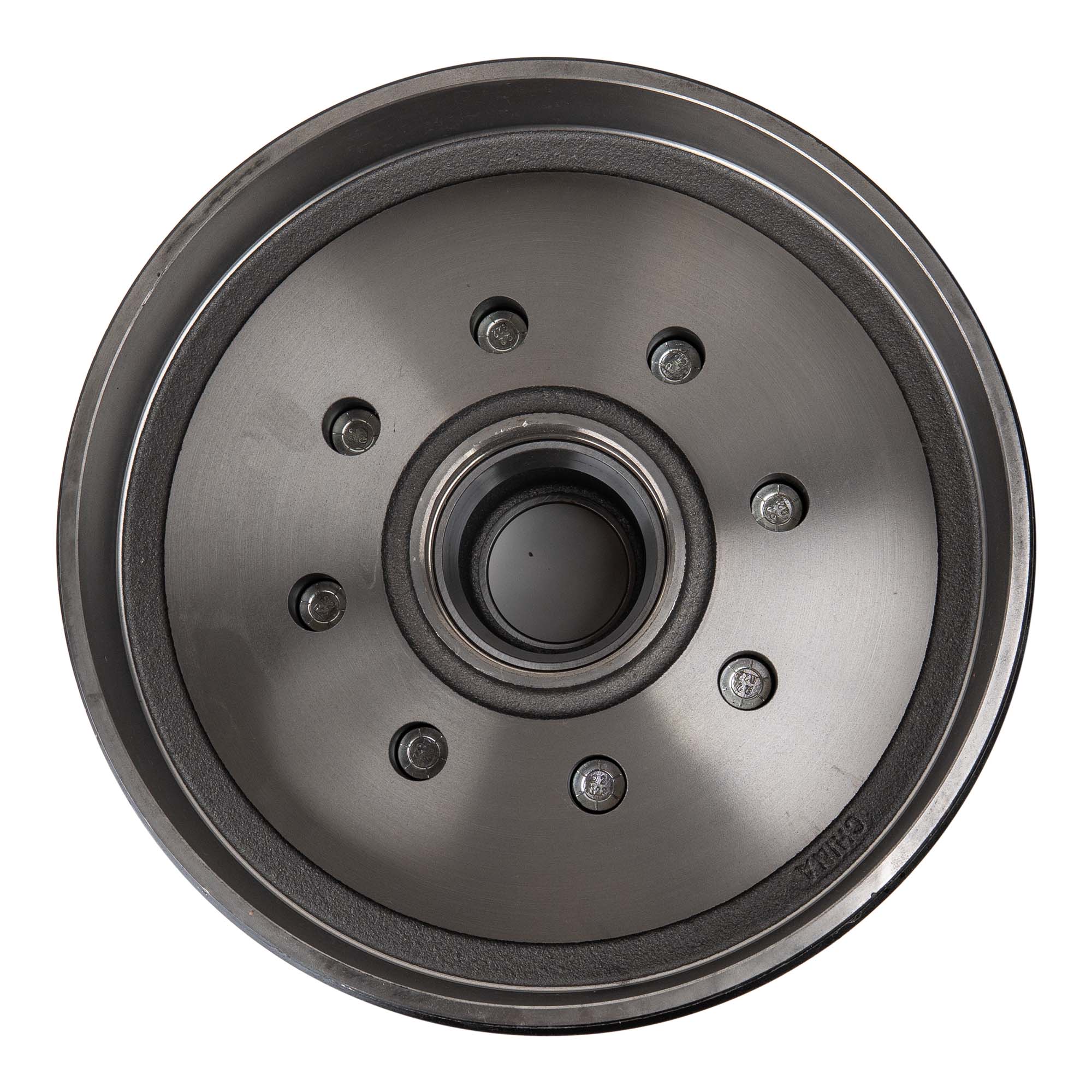

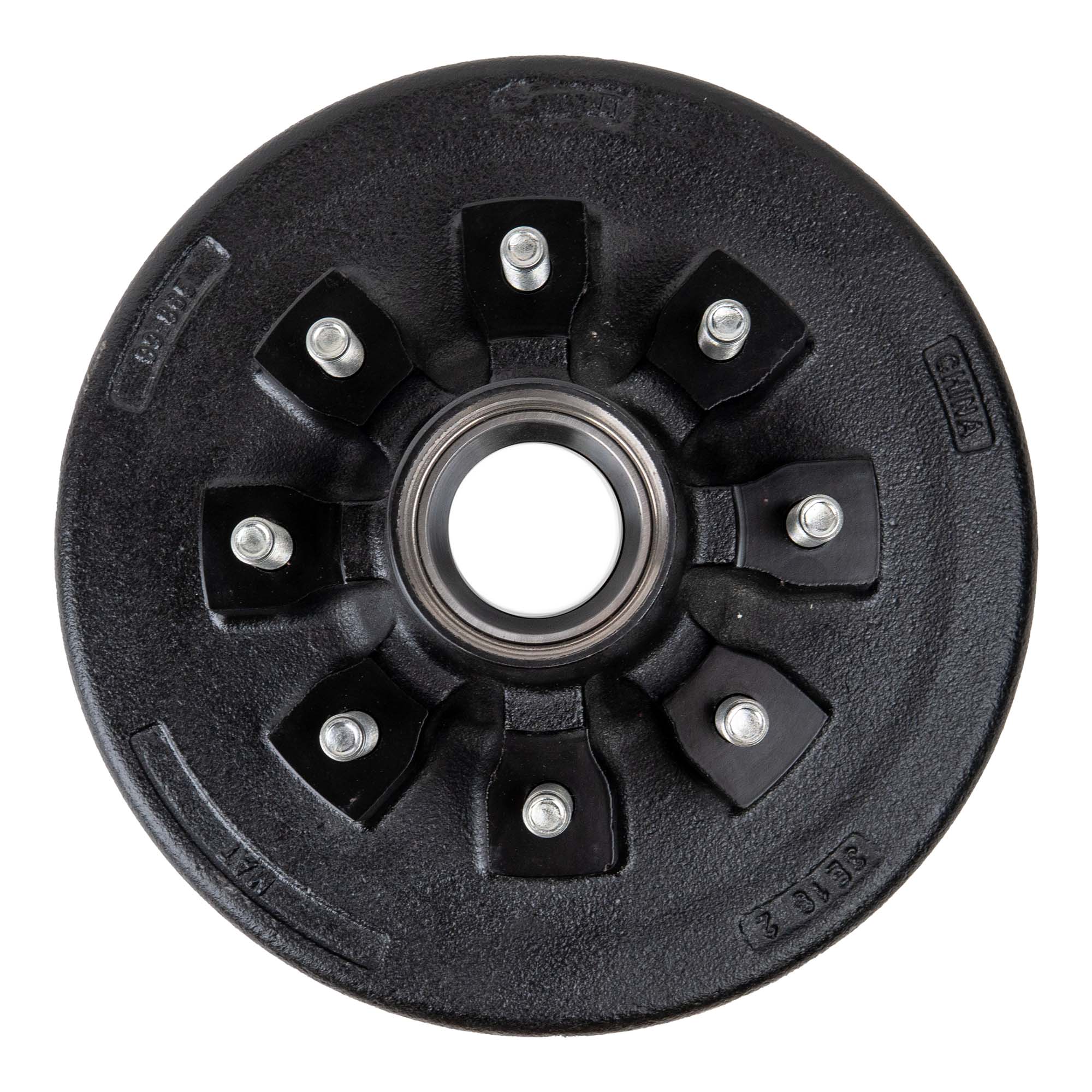

8k Trailer Axle Grease Hub and Drum - 8 lug - 9/16" - Hybrid

Name: 8k Trailer Axle Grease Hub and Drum - 8 lug - 9/16" - Hybrid
Brand: The Trailer Parts Outlet
Price: 87.99 USD
Availability: InStock
Rating: 4.5 (109 reviews)

1 5

8k Trailer Axle Grease Hub and Drum - 8 lug - 9/16" - Hybrid

SKU : 08HUBDRUM865-916BARETK-HYBRID

Online price only

$87.99

Online price only

SAVE 0% (833) 910-3416

4.5

Rated 4.5 out of 5 stars

109 Reviews

Shipping: Calculated at Checkout

Drum Options: Variant image

Drum

Drum Assembly with Grease

Upgrade to TK Service Kit

Bulk Drums (25 pc)

Crate of Drums (50 pc)

Product variants

Quantity

Tax Exempt? Enter info in cart when you're done shopping.

View full details

Product Information
Reviews

8k Trailer Axle Grease Hub and Drum – 8 Lug (Hybrid)

Replace your worn hub and drum with this high-quality 8k Grease Hub and Drum combination. Designed for 8,000 lb axles (typically listed as "Hybrid" or utilizing 9-10k components on a specific spindle), this assembly comes with the races pre-pressed, making installation easier.

Hub/Drum Only Specs:

1 - 8k Hub/Drum Only - Grease Bath - 8x6.5 Bolt Pattern
1 - 25520 Inner Race 3.265" OD (Pre-Pressed In Hub)
1 - 02420 Outer Race 2.688" OD (Pre-Pressed In Hub)
4,000 lb Capacity Per Hub
9/16" Studs (Pre-Pressed In Hub)
Use with a 12x2" brake

Hub/Drum Assembly Specs:

1 - 8k Hub/Drum Only - Grease Bath - 8x6.5 Bolt Pattern
1 - 8k (8000 lb Capacity) Bearing Kit
- 1 - 10-36 Double Lip Grease Seal 3.376" OD 2.250" ID
- 1 - 25520 Inner Race 3.265" O.D (Pre-Pressed In Hub)
- 1 - 02420 Outer Race 2.688" O.D (Pre-Pressed In Hub)
- 1 - 25580 Inner Bearing 1.750" I.D
- 1 - 02475 Outer Bearing 1.250" I.D
- 1 - 8,000 lb Grease Cap
- 1 - Cotter Pin
- 1 - Tang Washer
1 - Grease Tub/Tube
8 - Cone Wheel Lug Nuts

TK Service Kit Specs:

2 - 8K Hub/Drum - Grease Bath - 8x6.5 Bolt Pattern
2 - 8k (8000 lb Capacity) Bearing Kit
- 2 - 10-36 Double Lip Grease Seal 3.376" OD 2.250" ID
- 2 - 25520 Inner Race 3.265" O.D (Pre-Pressed In Hub)
- 2 - 02420 Outer Race 2.688" O.D (Pre-Pressed In Hub)
- 2 - 25580 Inner Bearing 1.750" I.D
- 2 - 02475 Outer Bearing 1.250" I.D
- 2 - 8,000 lb Grease Cap
- 2 - Cotter Pin
- 2 - Tang Washers
1 - Self Adjusting 8k Trailer Brake Assembly - 12"x2" (Driver Side)
1 - Self Adjusting 8k Trailer Brake Assembly - 12"x2" (Passenger Side)
1 - Grease Tub/Tube
16 - Cone Wheel Lug Nuts

Bulk Hub/Drum Specs:

25 - 8k Hub/Drum Only - Grease Bath - 8x6.5 Bolt Pattern
25 - 02420 Outer Race 2.688" OD (Pre-Pressed In Hub)
25 - 25520 Inner Race 3.265" OD (Pre-Pressed In Hub)

Crate Hub/Drum Specs:

50 - 8k Hub/Drum Only - Grease Bath - 8x6.5 Bolt Pattern
50 - 02420 Outer Race 2.688" OD (Pre-Pressed In Hub)
50 - 25520 Inner Race 3.265" OD (Pre-Pressed In Hub)

Features:

Hub & Drum with 8 on 6.5" Bolt Pattern For 8k Axles
Hub and drum comes with races pre-pressed for your convenience
This hub & drum is designed for use with a #42 spindle
Each hub & drum has a capacity of 4,000 lbs
Hub & drum uses 25580 inner bearing and a 02475 outer bearing (sold separately)
The bearings, grease seal, grease cap, wheel nuts, spindle nut, and spindle washer (sold separately)
Kit with hardware is available

This hub/drum is compatible with - 8k TK Hybrid Trailer Axle - 8000 lb Electric Brake 8 lug 9/16" Studs (12" x 2" Brake - 3.5" Tube)

Key Benefits

Ready to Install: Races are already installed, saving you time and effort.
Durable: Heavy-duty cast iron construction.
Exact Fit: Designed for 8k axles with #25580 inner and #02475 outer bearings (sold separately or in kit options).

Ideal For

Hub replacement on 8k axles
Servicing brakes and bearings

Why Buy from The Trailer Parts Outlet?

Get the right parts the first time. Our hubs are machined for precision and durability. If you need a custom axle built to your exact measurements, call our team at (936) 289 3191 for help.
