1106 - 4' 2" x 6' Single Axle 2K Utility Trailer DIY Master Plan

Skip to product information
1 of 2

1106 - 4' 2" x 6' Single Axle 2K Utility Trailer DIY Master Plan

1106 - 4' 2" x 6' Single Axle 2K Utility Trailer DIY Master Plan

SKU : MP1106PAPER
Regular price $25
Regular price $39.99 Sale price $25
Regular price $25
$25
SAVE 37%
Regular price
$39.99
Sale price
Plan Type:
Kit Option:
View full details
1106 - 4' 2" x 6' Single Axle 2K Utility Trailer DIY Master Plan
1106 - 4' 2" x 6' Single Axle 2K Utility Trailer DIY Master Plan

1106 - 4' 2" x 6' Single Axle 2K Utility Trailer DIY Master Plan

1106 - 4' 2" x 6' Single Axle 2K Utility Trailer DIY Master Plan

Regular price $25
Regular price $39.99 Sale price $25
Regular price $25
$25
SAVE 37%
Regular price
$39.99
Sale price
  • Product Information
  • Reviews

COPYRIGHT DISCLAIMER:

No part of this publication may be reproduced, distributed, or transmitted in any form or by any means, including photocopying, recording, or other electronic or mechanical methods, without the prior written permission of the publisher except in the case of brief quotations embodied in reviews and certain other non-commercial uses permitted by copyright law. By purchasing this product, the purchaser agrees to comply with this disclaimer.

Specs:

  • Box Size: 4'x2"x6'
  • Gross Capacity: 2000 lbs
  • Empty Weight: 555 lbs
  • Empty Tongue Weight: 55 lbs
  • Frame: Angle Steel
  • Deck: Wood

Features:

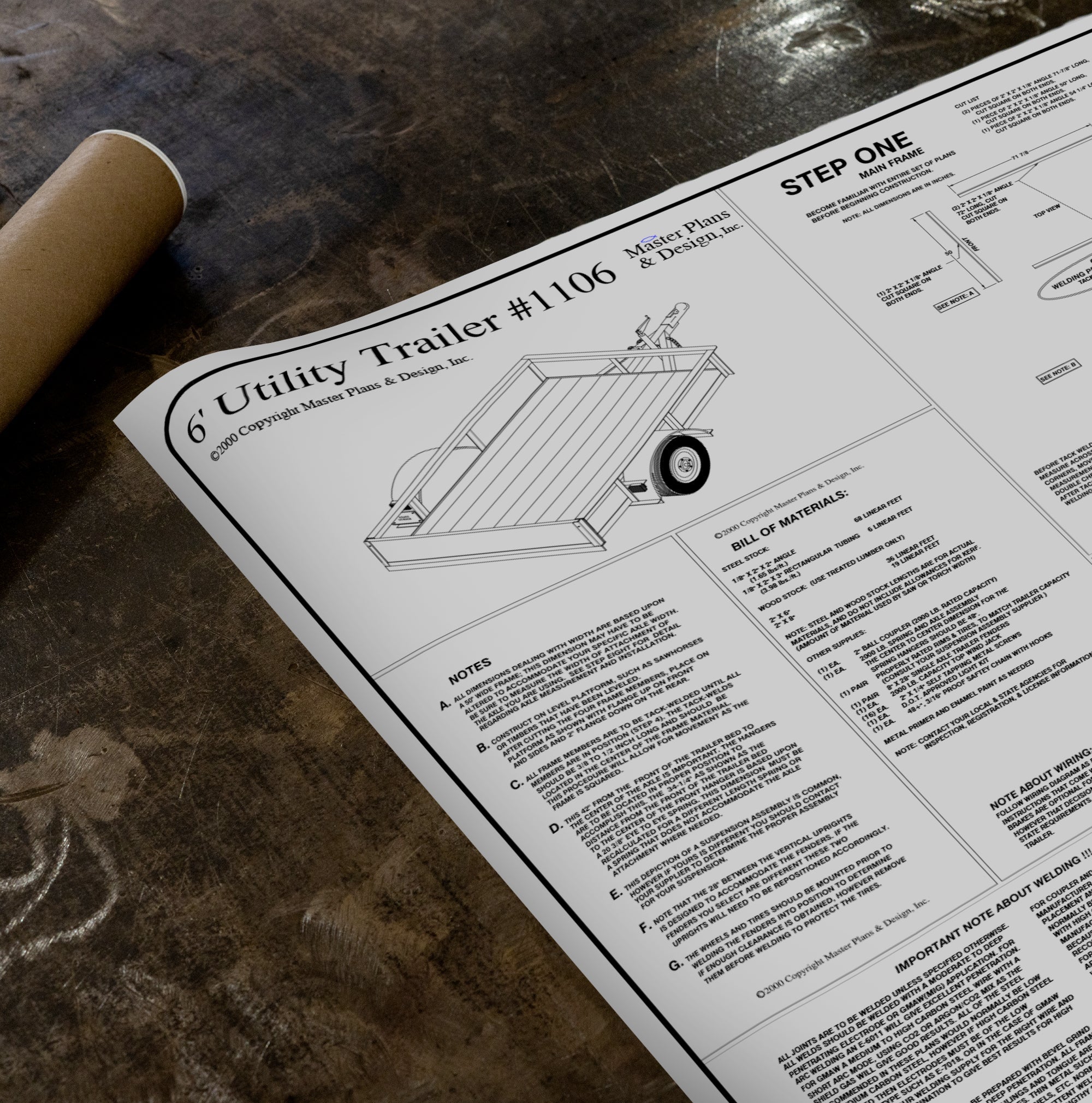

  • Engineer Approved & Stamped Full Sized 24" x 36" Blueprints
  • Suitable for High School Shop & Ag Classes, Industry, & Do-it-yourselfers
  • Detailed Cut List w/ Full Bill of Materials & Welding Tips
  • Tailored TK Trailer Kit to ensure all the right parts for the plan all packaged up for your convenience.
 Trailer parts kit specifically made for this plan is available in the option above.

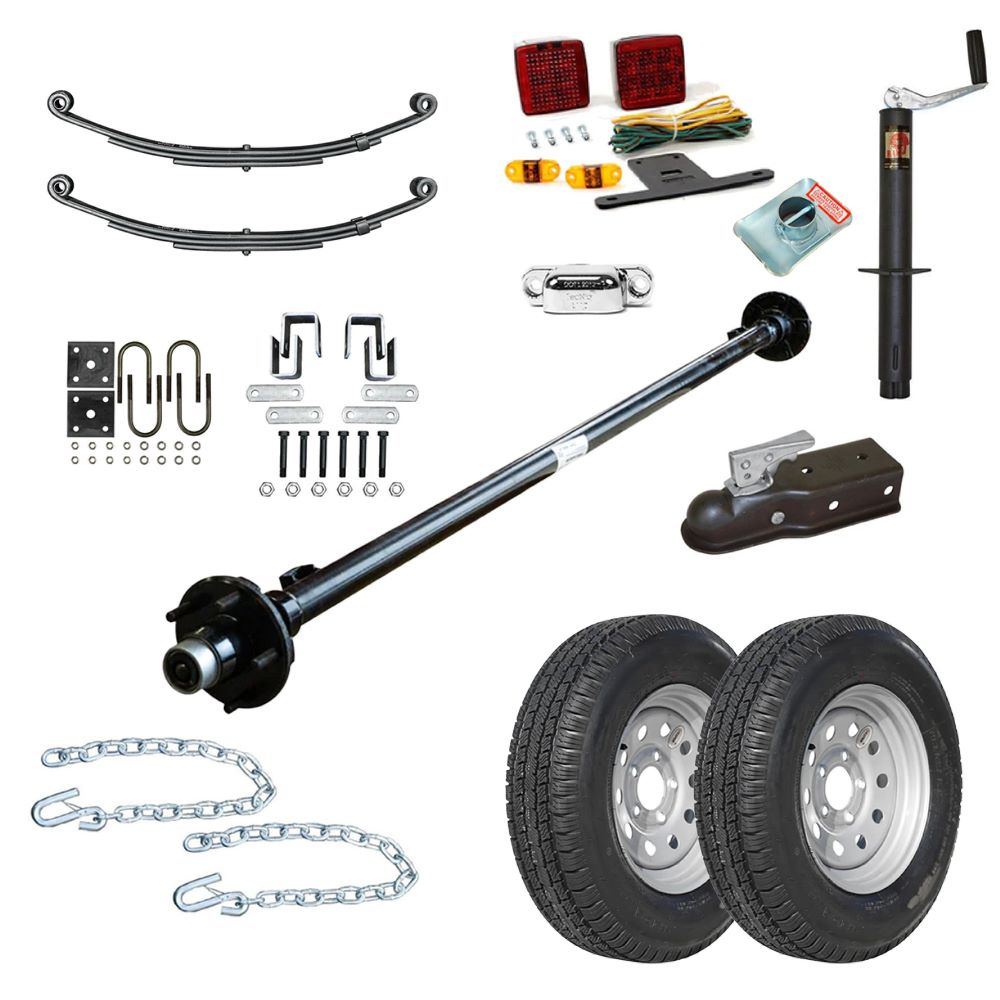

What's Included with Trailer Kit:

  • 1 - 2k Trailer Axle - 2000 lb Idler 5 lug (61/46)
  • 1 - Trailer U-bolt kit for 2000 lb Axles
  • 2 - 3 Leaf Trailer Double Eye Spring for 2000 lb Axles
  • 1 - Double Eye Single Axle Hanger Kit for 2000-7000 lb Axles
  • 2 - 13" 6 ply Radial TWA - ST 175/80R13 -5x4.5 (SM) TWA (Tire Wheel Assemblies) - Wheel Color: Silver Finish
  • 1 - 3.5K Straight Tongue Trailer Coupler - 3500 lb 2" x 3"
  • 1 - A-frame 2k Trailer Jack - 2000 lb Top Wind
  • 1 - Trailer Jack Footplate
  • 1 - LED Light Kit
  • 1 - License Plate Light-Rectangular
  • 2 - Silver Trailer Safety Chain - 1/4x31" (5k Capacity)
  • 1- 1106 Utility Trailer Master Plan Blueprint
